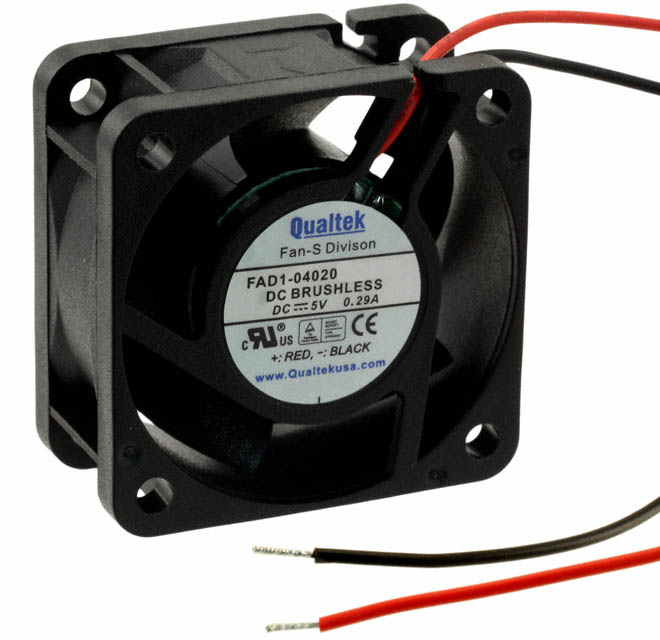

FAD1-04020CHAW11

Active

Qualtek

FAN AXIAL 40X20MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Axial Fans Datasheet

FAD1-04020CHAW11

Active

Qualtek

FAN AXIAL 40X20MM 12VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Axial Fans Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FAD1-04020CHAW11

Air Flow	4.5 CFM
Air Flow	0.126 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Hydrodynamic
Current Rating (Amps)	40 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	17.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.48 W
RPM	4200 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.08 in H2O
Static Pressure	19.9 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	28.12 g
Weight	0.062 lb
Width [y]	20 mm

FAD1-04020 Series

Part	Material - Blade	Air Flow	Air Flow	Noise	Power (Watts)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Frame	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Weight	Weight	Termination	Fan Type	Static Pressure	Static Pressure	RPM	Current Rating (Amps)	Voltage - Rated	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow
Qualtek FAD1-04020CHHW11	Plastic	0.246 mł/min	8.8 CFM	36 dB	1.2 W	40 mm	Square	40 mm	Plastic	CE cURus TUV	13.2 VDC	10.8 VDC	20 mm	28.12 g	0.062 lb	2 Wire Leads	Tubeaxial	69.7 Pa	0.28 in H2O	7800 RPM	100 mA	12 VDC	Hydrodynamic	70 °C	70 °C	-10 °C	-10 °C
Qualtek FAD1-04020BSMW11	Plastic	0.216 m³/min	7.7 CFM	33 dB(A)	0.8 W	40 mm	Square	40 mm	Plastic	CE cURus TUV	5.5 V	4.5 V	20 mm	28.12 g	0.062 lb	2 Wire Leads	Tubeaxial	49.8 Pa	0.2 in H2O	6900 RPM		5 V	Sleeve	60 °C	60 °C	-10 °C	-10 °C
Qualtek FAD1-04020CHAW11	Plastic	0.126 m³/min	4.5 CFM	17.5 dB(A)	0.48 W	40 mm	Square	40 mm	Plastic	CE cURus TUV	13.2 VDC	10.8 VDC	20 mm	28.12 g	0.062 lb	2 Wire Leads	Tubeaxial	19.9 Pa	0.08 in H2O	4200 RPM	40 mA	12 VDC	Hydrodynamic	70 °C	70 °C	-10 °C	-10 °C
Qualtek FAD1-04020DBHW11	Plastic	0.246 mł/min	8.8 CFM	36 dB	1.68 W	40 mm	Square	40 mm	Plastic	CE cURus TUV	26.4 VDC	21.6 VDC	20 mm	28.12 g	0.062 lb	2 Wire Leads	Tubeaxial	69.7 Pa	0.28 in H2O	7800 RPM	70 mA	24 VDC	Ball	70 °C	70 °C	-10 °C	-10 °C
Qualtek FAD1-04020CBMW11	Plastic	0.216 m³/min		33 dB(A)		40 mm	Square	40 mm	Plastic	CE cURus TUV	13.2 VDC	10.8 VDC	20 mm	28.12 g	0.062 lb	2 Wire Leads	Tubeaxial	49.8 Pa	0.2 in H2O	6900 RPM		12 VDC	Ball	70 °C	70 °C	-10 °C	-10 °C	7.7 CFM
Qualtek FAD1-04020CSMW11	Plastic	0.216 m³/min	7.7 CFM	33 dB(A)		40 mm	Square	40 mm	Plastic	CE cURus TUV	13.2 VDC	10.8 VDC	20 mm	28.12 g	0.062 lb	2 Wire Leads	Tubeaxial	49.8 Pa	0.2 in H2O	6900 RPM		12 VDC	Sleeve	60 °C	60 °C	-10 °C	-10 °C
Qualtek FAD1-04020DSAW11	Plastic	0.126 m³/min	4.5 CFM	17.5 dB(A)	1.68 W	40 mm	Square	40 mm	Plastic	CE cURus TUV	26.4 VDC	21.6 VDC	20 mm	28.12 g	0.062 lb	2 Wire Leads	Tubeaxial	19.9 Pa	0.08 in H2O	4200 RPM	140 mA	24 VDC	Sleeve	60 °C	60 °C	-10 °C	-10 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FAD1-04020 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Hydrodynamic 4.5 CFM (0.126mł/min) 2 Wire Leads
