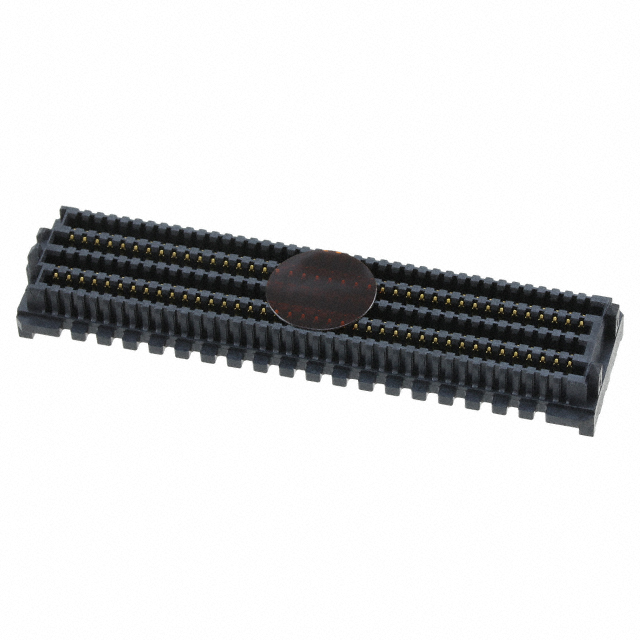

ASP-134604-01 - ASP Series

ASP-134604-01

Active
Samtec Inc.

CONN, VITA 57 FMC, HEADER, 160POS, 4ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSEAM-10-02.0-L-05-1-A-K-TR Datasheet 02Datasheet+3
ASP-134604-01 - ASP Series

ASP-134604-01

Active
Samtec Inc.

CONN, VITA 57 FMC, HEADER, 160POS, 4ROW

Deep-Dive with AI

DocumentsSEAM-10-02.0-L-05-1-A-K-TR Datasheet 02Datasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationASP-134604-01
Connector TypeMale Pins, Array
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesVITA 57
Height Above Board [z]0.24 "
Height Above Board [z]6.1 mm
Mounting TypeSurface Mount
Number of Positions160
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 20.97
10$ 19.62
25$ 18.05
50$ 14.91
100$ 13.13
Tape & Reel (TR) 200$ 13.13
400$ 11.99
NewarkEach (Supplied on Cut Tape) 1$ 20.18
10$ 17.59
25$ 15.69
50$ 14.54
100$ 13.39

Description

General part information

134604-01 Series

The ASP-134604-01 is a 4-row SEARAY™ VITA 57 Male Connector with gold-plated contact.
