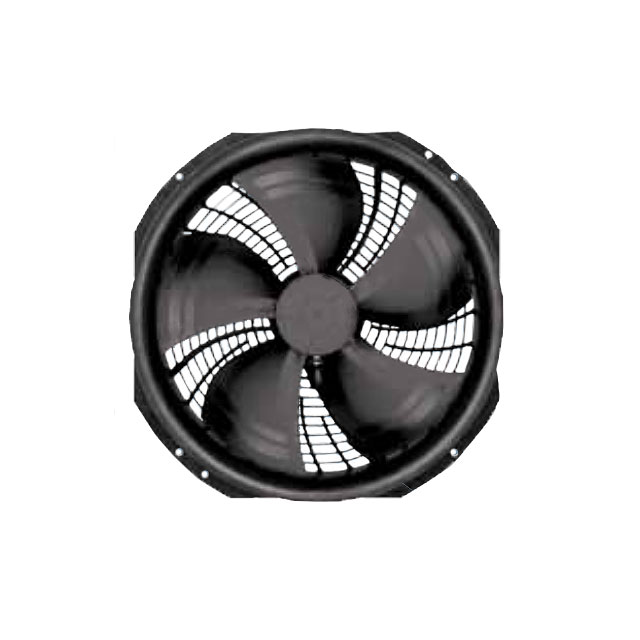

W1G300-BB19-01

Active

ebm-papst Inc.

FAN AXIAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	W1G300-BB19-01

Approval Agency	CCC, CE, UL, CSA, VDE, EAC
Bearing Type	Ball
Current Rating (Amps)	270 mA
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Polypropylene (PP)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Operating Temperature [Min]	-30 °C
Power (Watts)	35 W
RPM	900 RPM
Size / Dimension	Round
Size / Dimension [diameter]	397 mm
Static Pressure	0.14 in H2O
Static Pressure	34.9 Pa
Termination	3 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [y]	92 mm

Part	Fan Type	Size / Dimension [diameter]	Size / Dimension	Width [y]	Material - Frame	Material - Blade	Approval Agency	Ingress Protection	Current Rating (Amps)	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage - Rated	Static Pressure	Static Pressure	Bearing Type	Features	Power (Watts)
ebm-papst Inc. W1G300-BB19-01	Tubeaxial	397 mm	Round	92 mm	Polypropylene (PP)	Nylon Polyamide (PA)	CCC CE CSA EAC UL VDE	IP55 - Dust Protected Water Resistant	270 mA	900 RPM	-30 ░C	50 °C	-30 °C	50 °C	3 Wire Leads with Splice Terminals	230 VAC	0.14 in H2O	34.9 Pa	Ball	Thermal Overload Protector (TOP)	35 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 397mm Dia Ball 3 Wire Leads with Splice Terminals
