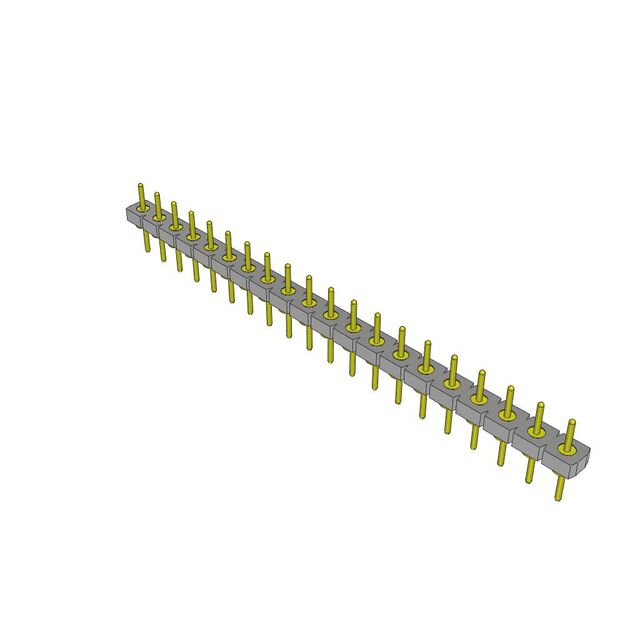

BBL-120-T-E

Active

Samtec Inc.

CONN HEADR LOPRO 20POS .100 TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADR LOPRO 20POS .100 TIN

Technical Specifications

Parameters and characteristics for this part

Specification	BBL-120-T-E

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.07 in
Insulation Height	1.78 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Type	Number of Rows	Contact Shape	Mounting Type	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Finish - Post	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Overall Contact Length
Samtec Inc. BBL-120-T-F	Male Pin	1	Circular	Through Hole	8.43 mm	0.332 in	Black	Nickel	Header	0.122 in	3.1 mm	All	20	1.27 µm	50 µin	0.1 in	2.54 mm	0.085 "	2.15 mm	Push-Pull	-55 °C	125 °C	Solder	Unshrouded	3.18 mm	0.125 in	Liquid Crystal Polymer (LCP)
Samtec Inc. BBL-120-T-E	Male Pin	1	Circular	Through Hole		7.62 mm	Black	Nickel	Header			All	20	1.27 µm	50 µin	0.1 in	2.54 mm	0.07 in	1.78 mm	Push-Pull	-55 °C	125 °C	Solder	Unshrouded	3.18 mm	0.125 in	Liquid Crystal Polymer (LCP)	0.3 in
