Q-32066000M.75M

Active

Amphenol Custom Cable

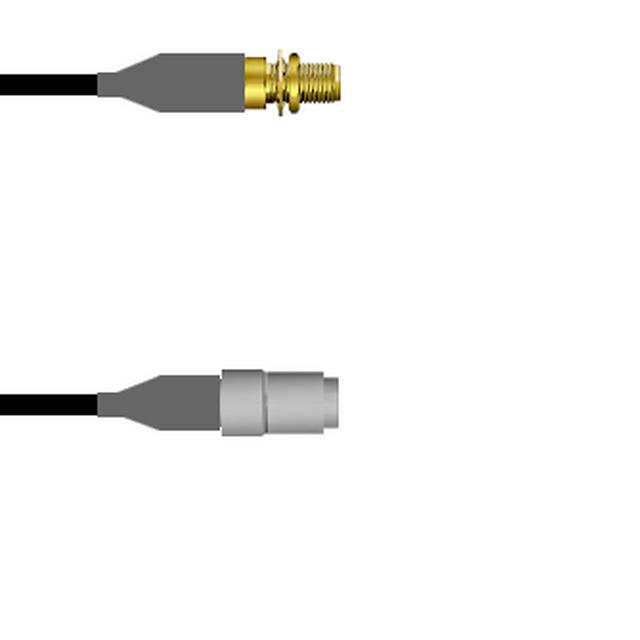

CBL ASSY 1.0/2.3-SMA PL-J 29.53"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY 1.0/2.3-SMA PL-J 29.53"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-32066000M.75M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	2.5 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	1.0/2.3 to SMA

Part	2nd Connector Mounting Type	1st Contact Gender	Connector Impedance	2nd Contact Gender	Style	1st Connector Mounting Type	Frequency - Max [Max]	Cable Impedance	Features	Overall Impedance	Length	Length	Cable Type	Color	2nd Connector	2nd Connector Mounting Feature
Amphenol Custom Cable Q-32066000M.75M	Panel Mount	Male	50 Ohms	Female	1.0/2.3 to SMA	Free Hanging (In-Line)	2.5 GHz	50 Ohms	Shielded	50 Ohms	29.53 "	750 mm	LMR 240	Black	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-32066000M0.5M	Panel Mount	Male	50 Ohms	Female	1.0/2.3 to SMA	Free Hanging (In-Line)	2.5 GHz	50 Ohms	Shielded	50 Ohms	19.69 "	50 cm	LMR 240	Black	SMA Jack	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 1.0/2.3 to SMA LMR 240 29.53" (750.00mm)

Technical documentation and resources

No documents available
