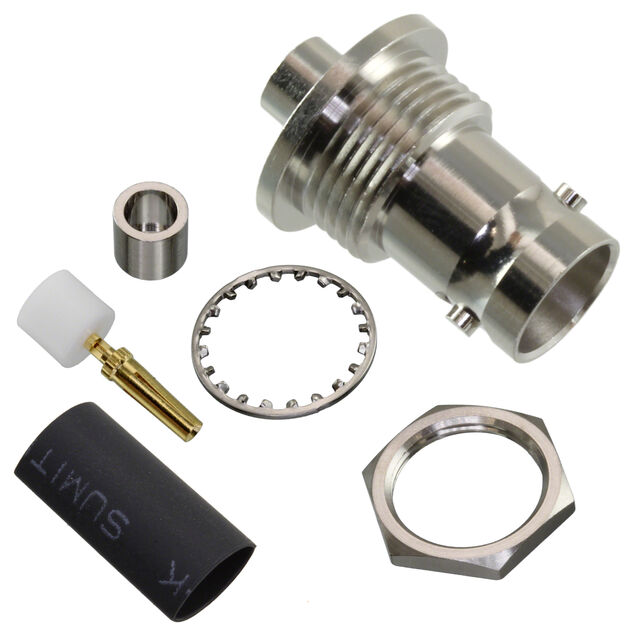

BNC(75)-BPJ-1.5CV-(P)(40)

Active

Hirose Electric USA, Inc.

CONN BNC JACK STR 75 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BNC(75)-BPJ-1.5CV-(P)(40)

Active

Hirose Electric USA, Inc.

CONN BNC JACK STR 75 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BNC(75)-BPJ-1.5CV-(P)(40)

Body Finish	Nickel
Body Material	Brass
Cable Group	1.5C-2V
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	Connector, Washer, Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Solder
Voltage Rating	150 VDC

BNC(75) Series

Part	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Center Contact Material	Impedance	Fastening Type	Number of Ports	Housing Color	Shield Termination	Body Material	Mating Cycles	Dielectric Material	Connector Style	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Convert To (Adapter End)	Includes	Conversion Type	Convert From (Adapter End)	Adapter Type	Mounting Feature	Style	Adapter Series	Cable Group	Voltage Rating	Center Gender
Hirose Electric USA, Inc. BNC(75)-BLR-PC-12G(01)	Female Socket Jack	Through Hole Right Angle	85 °C	-40 °C	Nickel	Beryllium Copper	75 Ohms	Bayonet Lock	1	Silver	Solder	Zinc Alloy	5000	Syndiotactic Polystyrene (SPS)	BNC	12 GHz	Solder	Gold
Hirose Electric USA, Inc. BNC(75)J-H.FLJ-BPA-2(40)			85 °C	-40 °C			75 Ohms	Bayonet Lock Snap-On						Polytetrafluoroethylene (PTFE)		2 GHz		Gold	H.FL Jack Male Pin	1 Connector 1 Lockwasher 1 Nut	Between Series	BNC Jack Female Socket	Jack to Jack	Bulkhead	Straight	BNC to H.FL
Hirose Electric USA, Inc. BNC(75)-P-5.5C-12G	Male Pin Plug	Free Hanging (In-Line)	85 °C	-30 ░C	Nickel	Brass	75 Ohms	Bayonet Lock	1	Silver	Crimp	Brass	500	Polytetrafluoroethylene (PTFE)	BNC	2 GHz	Solder	Gold									1.5C-QEV.CW
Hirose Electric USA, Inc. BNC(75)-LR-PC-6(41)	Female Socket Jack	Through Hole Right Angle	85 °C	-55 °C	Nickel	Beryllium Copper	75 Ohms	Bayonet Lock	1	Silver	Solder	Brass	1000	Polytetrafluoroethylene (PTFE)	BNC	1.5 GHz	Solder	Gold
Hirose Electric USA, Inc. BNC(75)-BPJ-1.5CV-(P)(40)	Female Socket Jack		60 °C	-30 ░C	Nickel	Beryllium Copper	75 Ohms	Bayonet Lock	1	Silver	Solder	Brass	500	Polytetrafluoroethylene (PTFE)	BNC	2 GHz	Solder	Gold		Connector Nut Washer				Bulkhead - Front Side Nut			1.5C-2V	150 VDC
Hirose Electric USA, Inc. BNC(75)-PJ-1.5CV-2P(41)
Hirose Electric USA, Inc. BNC(75)-PR(6)-PC-12G	Female Socket Jack	Panel Mount Through Hole	85 °C	-40 °C	Nickel	Phosphor Bronze	75 Ohms	Bayonet Lock	1	Silver	Solder	Brass		Polytetrafluoroethylene (PTFE)	BNC	12 GHz	Solder	Gold						Flange
Hirose Electric USA, Inc. BNC(75)J-H.FLJ-BPA(41)			85 °C	-40 °C	Nickel	Beryllium Copper	75 Ohms	Bayonet Lock Snap-On				Brass		Polytetrafluoroethylene (PTFE)		3 GHz		Gold	H.FL Jack Male Pin	1 Connector 1 Lockwasher 1 Nut	Between Series	BNC Jack Female Socket	Jack to Jack	Bulkhead	Straight	BNC to H.FL
Hirose Electric USA, Inc. BNC(75)-PLR-PC-12G-1	Female Socket Jack	Panel Mount Right Angle Through Hole	85 °C	-40 °C	Nickel	Beryllium Copper	75 Ohms	Bayonet Lock	1	Silver	Solder	Zinc Alloy		Syndiotactic Polystyrene (SPS)	BNC	12 GHz	Solder	Gold						Flange
Hirose Electric USA, Inc. BNC(75)J-PL71J-BPA-1					Nickel	Beryllium Copper	75 Ohms	Bayonet Lock Snap-On				Brass		Polytetrafluoroethylene (PTFE)				Gold	Female Socket PL71 Jack		Between Series	BNC Jack Female Socket	Jack to Jack	Bulkhead	Straight	BNC to PL71			Female to Female
