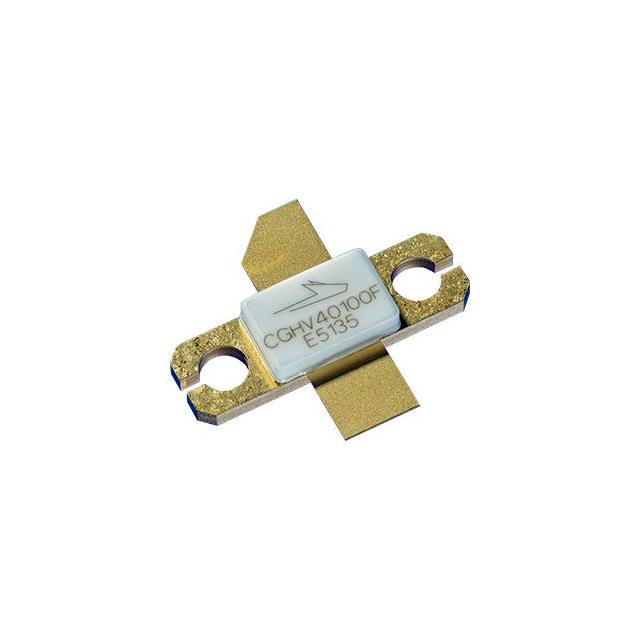

CGHV40100F

Active

MACOM Technology Solutions

RF MOSFET HEMT 50V 440193

Search across all available documentation for this part.

Active

MACOM Technology Solutions

RF MOSFET HEMT 50V 440193

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	For Use With/Related Products	Type	Frequency [Max]	Frequency [Min]	Voltage - Test	Power - Output	Voltage - Rated	Current Rating (Amps)	Supplier Device Package	Gain	Current - Test	Technology	Package / Case
MACOM Technology Solutions CGHV40100F-AMP	Board(s)	CGHV40100F	Transistor	4 GHz	0 Hz
MACOM Technology Solutions CGHV40100F				3 GHz	0 Hz	50 V	116 W	125 V	8.7 A	440193	11 dB	600 mA	HEMT	440193
MACOM Technology Solutions CGHV40100P				4 GHz	0 Hz	50 V	116 W	125 V	8.7 A	440206	11 dB	600 mA	HEMT	440206
MACOM Technology Solutions CGHV40100P-AMP	Board(s)	CGHV40100P	Transistor	2.2 GHz	1.8 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 50 V 600 mA 0Hz ~ 3GHz 11dB 116W 440193
