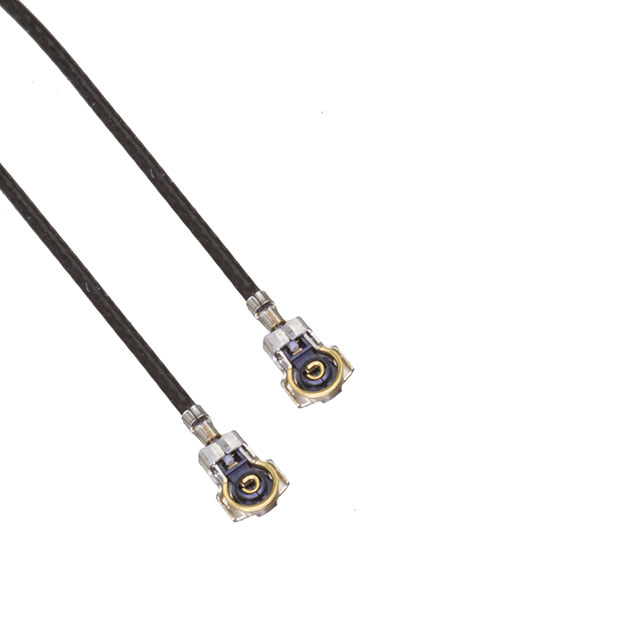

MXLAB3LA1000
ObsoleteMurata Power Solutions Inc.
CBL ASSY LSC PLUG TO PLUG 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
MXLAB3LA1000
ObsoleteMurata Power Solutions Inc.
CBL ASSY LSC PLUG TO PLUG 3.937"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MXLAB3LA1000 |
|---|---|
| 1st Connector | LSC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | LSC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 0.49mm OD Coaxial Cable |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MXLAB3 Series
Cable Assembly Coaxial LSC to LSC 0.49mm OD Coaxial Cable 3.937" (100.00mm)
