2250056-1

Active

TRP Connector B.V.

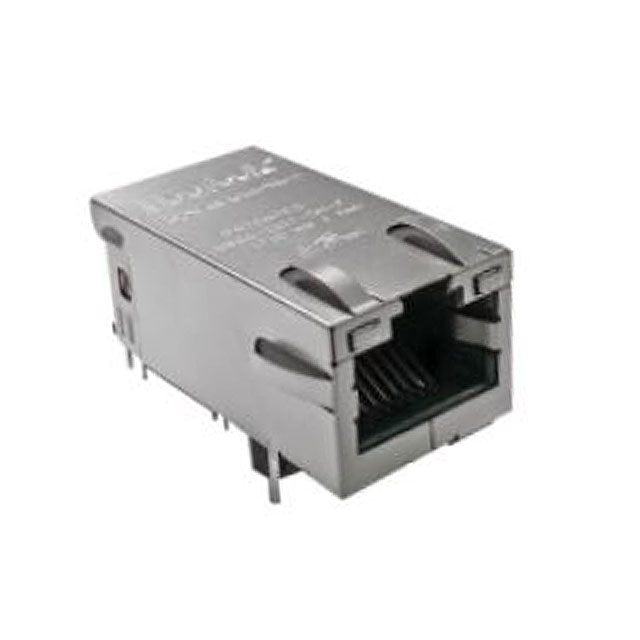

CONN JACK 1PORT 100 BASE-TX PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-TX PCB

Technical Specifications

Parameters and characteristics for this part

Specification	2250056-1

Applications	Power over Ethernet (PoE), AutoMDIX, 10/100 Base-TX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Height Above Board [z]	0.539 in
Height Above Board [z]	13.69 mm
Housing Material	Thermoplastic
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	LED Color	Number of Ports	Housing Material	Tab Direction	Shield Material	Orientation	Number of Rows	Height Above Board [z]	Height Above Board [z]	Termination	Connector Type	Mounting Type	Applications	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
TRP Connector B.V. 2250056-1	Shielded EMI Finger	85 °C	-40 °C	Phosphor Bronze	Green - Green	1	Thermoplastic	Up	Brass	90 °	1	0.539 in	13.69 mm	Solder	RJ45	Through Hole	10/100 Base-TX AutoMDIX Power over Ethernet (PoE)	50 µin	1.27 µm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)

Technical documentation and resources

No documents available
