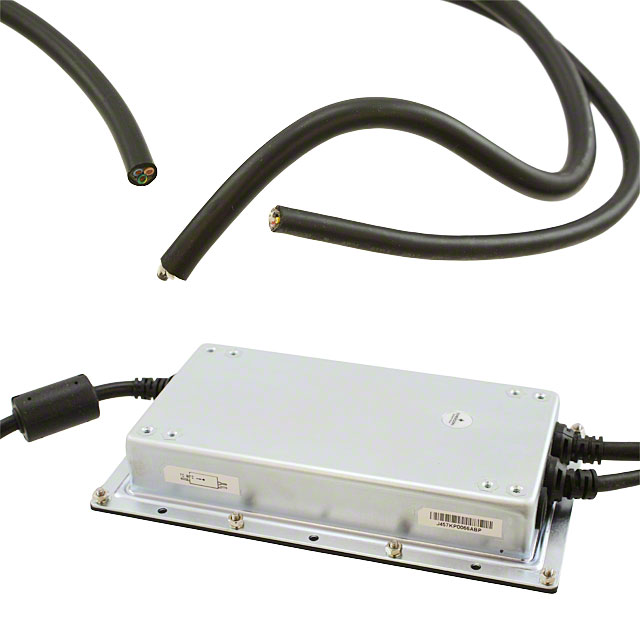

LCC250-24U-4PE

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 24V 10.4A 250W 11-PIN

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 24V 10.4A 250W 11-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	LCC250-24U-4PE

Applications	ITE (Commercial), Medical
Approval Agency	CE, CB
Current - Output 1	10.4 A
Efficiency	91 %
Features	Universal Input, Remote On/Off, Adjustable Output, Remote Sense, Baseplate, PFC, IP64
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	250 W
Size / Dimension [x]	7 "
Size / Dimension [x]	177.8 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.4 mm
Size / Dimension [z]	37.6 mm
Size / Dimension [z]	1.48 "
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Features	Voltage - Output 1	Current - Output 1	Approval Agency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Number of Outputs	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]
ARTESYN / Advanced Energy LCC250-12U-7PE	4000 V	90 VAC	264 VAC	250 W	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	12 V	20.8 A	CB CE	ITE (Commercial) Medical	7 "	37.6 mm	4 "	1.48 "	177.8 mm	101.4 mm	Chassis Mount	1	Enclosed	91 %	85 °C	-40 °C
ARTESYN / Advanced Energy LCC250-48U-4P	4000 V	90 VAC	264 VAC	250 W	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	48 V	5.2 A	CB CE	ITE (Commercial) Medical	7 "	37.6 mm	4 "	1.48 "	177.8 mm	101.4 mm	Chassis Mount	1	Enclosed	91 %	85 °C	-40 °C
ARTESYN / Advanced Energy LCC250-48U-7P	4000 V	90 VAC	264 VAC	250 W	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	48 V	5.2 A	CB CE	ITE (Commercial) Medical	7 "	37.6 mm	4 "	1.48 "	177.8 mm	101.4 mm	Chassis Mount	1	Enclosed	91 %	85 °C	-40 °C
ARTESYN / Advanced Energy LCC250-24U-4PE	4000 V	90 VAC	264 VAC	250 W	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	24 V	10.4 A	CB CE	ITE (Commercial) Medical	7 "	37.6 mm	4 "	1.48 "	177.8 mm	101.4 mm	Chassis Mount	1	Enclosed	91 %	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 189.12

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
