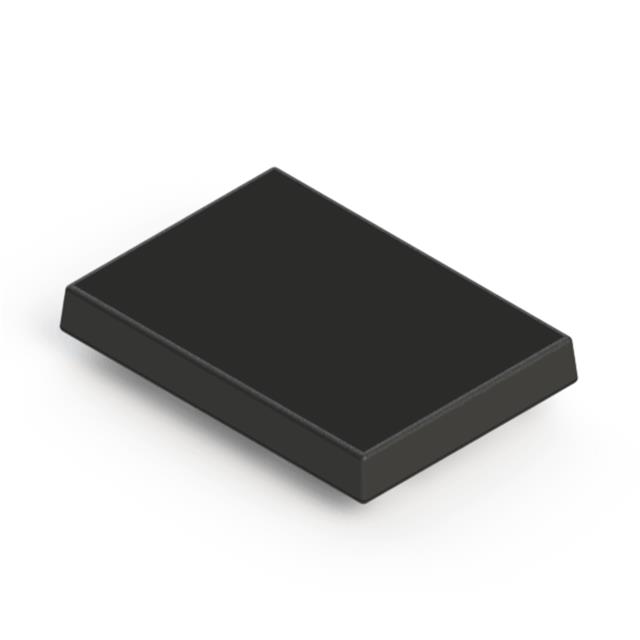

071I,BK

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	071I,BK

Area (L x W) [custom]	217 cm˛
Area (L x W) [custom]	33.6 in˛
Color	Black
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height [z]	22.86 mm
Height [z]	0.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	139.71 g
Weight	0.308 lb

Part	Design	Height [z]	Height [z]	Thickness	Thickness	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Color	Features	Material	Area (L x W) [custom]	Area (L x W) [custom]	Ratings	Weight	Weight	Area (L x W)	Area (L x W)
Serpac 071I,BK	Cover Included Hand Held	22.86 mm	0.9 in	2.54 mm	0.1 in	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Black	PCB Supports	Plastic ABS	217 cm˛	33.6 in˛	IP40 NEMA 1	139.71 g	0.308 lb
Serpac 071I,AL	Cover Included Hand Held	22.86 mm	0.9 in	2.54 mm	0.1 in	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Almond	PCB Supports	Plastic ABS			IP40 NEMA 1	139.71 g	0.308 lb	33.6 in²	217 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 0.900" (22.86mm)

Technical documentation and resources

No documents available
