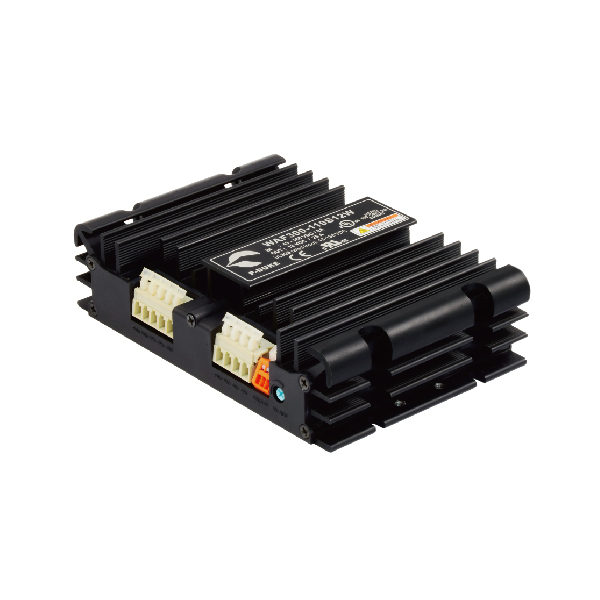

WAF300-110S24W

Active

P-DUKE Technology

DC/DC CONVERTER 24V 300W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC/DC CONVERTER 24V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	WAF300-110S24W

Applications	Railway, Industrial, ITE (Commercial)
Approval Agency	CE, cURus, cULus
Current - Output (Max) [Max]	12.5 A
Efficiency	91 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	300 W
Size / Dimension [x]	152.4 mm
Size / Dimension [x]	6 in
Size / Dimension [y]	4.01 in
Size / Dimension [y]	101.9 mm
Size / Dimension [z]	38.6 mm
Size / Dimension [z]	1.52 in
Standard Number	50155, 60950-1, UL 508, 62368-1
Type	Enclosed
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Efficiency	Standard Number	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Output 1	Type	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Isolation
P-DUKE Technology WAF300-110S24W	91 %	50155 60950-1 62368-1 UL 508	12.5 A	-40 °C	100 °C	1	160 V	43 V	CE cULus cURus	24 V	Enclosed	300 W	Chassis Mount	152.4 mm	38.6 mm	6 in	4.01 in	101.9 mm	1.52 in	Industrial ITE (Commercial) Railway	3000 V
P-DUKE Technology WAF300-48S28W	91 %	50155 60950-1 62368-1 UL 508	10.8 A	-40 °C	100 °C	1	75 V	18 V	CE cULus cURus	28 V	Enclosed	302 W	Chassis Mount	152.4 mm	38.6 mm	6 in	4.01 in	101.9 mm	1.52 in	Industrial ITE (Commercial) Railway	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 24V 12.5A 160V Input
