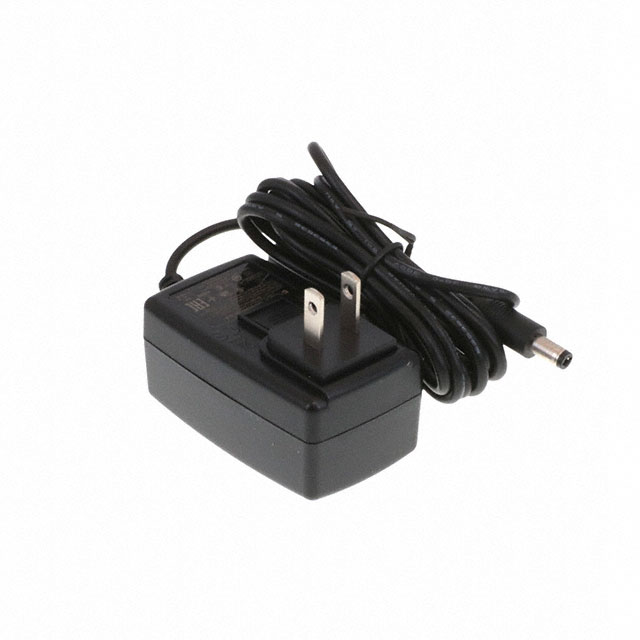

WR9QE1500LCPNNAR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QE1500LCPNNAR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QE1500LCPNNAR6B

Applications	ITE (Commercial)
Approval Agency	LPS, CCC, CB, RCM, CE, BSMI, EAC, PSE, VCCI, cULus, UKRSepro, FCC
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	2.91 "
Size / Dimension [x]	74 mm
Size / Dimension [y]	1.71 in
Size / Dimension [y]	43.5 mm
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

WR9QE1500 Series

Part	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [x]	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Efficiency	Power (Watts)	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption [Max]	Polarization	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Form	Input Type	Applications	Approval Agency	Output Connector [z]	Size / Dimension [y]	Size / Dimension [z]
GlobTek, Inc. WR9QE1500LCPNNAR6B	Multi-Blade	Barrel Plug	2.5 mm 5.5 mm	11 mm	1.5 A	90 VAC	264 VAC	12 V	Level VI	18 W	International	40 °C	0 °C	75 mW	Positive Center	1.83 m	72 in	1.71 in	1.34 in	2.91 "	43.5 mm	34 mm	74 mm	60950-1 62368-1	Wall Mount (Class II)	Multi-Blade (Sold Separately)	ITE (Commercial)	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI
GlobTek, Inc. WR9QE1500CCP-NM(R6B)	Multi-Blade	Barrel Plug	2.1 mm 5.5 mm		1.5 A	90 VAC	264 VAC	12 V	Level VI	18 W	International	40 °C	-20 C	75 mW	Positive Center	1.83 m	72 in	1.71 in	1.45 in	2.91 "	43.5 mm	36.8 mm	74 mm	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	Wall Mount (Class II)	Multi-Blade (Sold Separately)	Household Appliances ITE (Commercial) Medical	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	11 mm
GlobTek, Inc. WR9QE1500LCPNEU(R6B)	Multi-Blade	Barrel Plug	2.5 mm 5.5 mm	11 mm	1.5 A	90 VAC	264 VAC	12 V	CoC Tier 2 Level VI	18 W	International	40 °C	0 °C	75 mW	Positive Center	1.53 m	60.2 in							60950-1 62368-1	Wall Mount (Class II)	Multi-Blade (Sold Separately)	ITE (Commercial)	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI
GlobTek, Inc. WR9QE1500KCP-N(R6B)	Multi-Blade	Barrel Plug	1.35 mm 3.5 mm		1.5 A	90 VAC	264 VAC	12 V	CoC Tier 2 Level VI	18 W	International	40 °C	0 °C	75 mW	Positive Center	1.5 m	60.2 in	1.71 in	1.39 in	2.91 "			74 mm		Wall Mount (Class II)	Multi-Blade (Sold Separately)	ITE (Commercial)	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI	9.5 mm	43.5 mm	35.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.91
		5	$ 8.66
		10	$ 8.47

Description

General part information

WR9QE1500 Series

12V 18 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
