495819

Active

Essentra Access Solutions

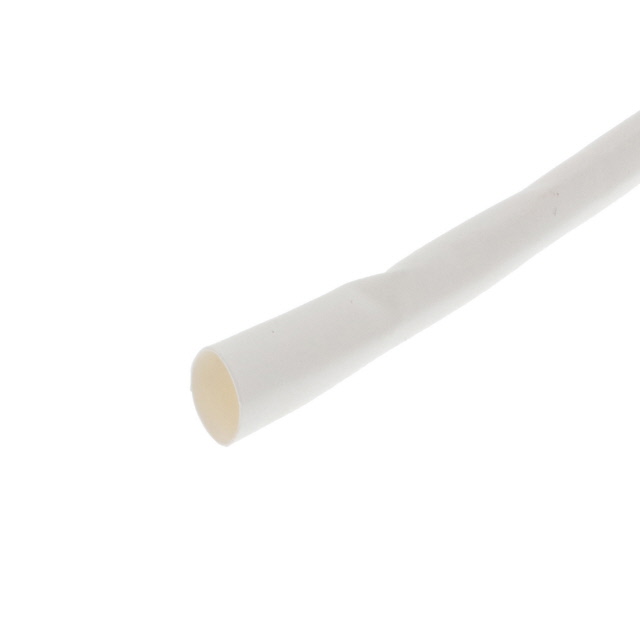

HEATSHRINK 1/4" X 16.4' WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

495819

Active

Essentra Access Solutions

HEATSHRINK 1/4" X 16.4' WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	495819

Color	White
Features	Flame Retardant
Inner Diameter - Recovered	3.18 mm
Inner Diameter - Recovered [diameter]	0.125 in
Inner Diameter - Supplied [diameter]	0.25 in
Inner Diameter - Supplied [diameter]	6.35 mm
Length [x]	16.4 ft
Length [x]	5 m
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.56 mm
Recovered Wall Thickness	0.022 "
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

- Series

...

Part	Bushing, Grommet Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Color	Material Flammability Rating	Panel Thickness	Panel Thickness	Material	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	For Use With/Related Products	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Type	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Mounting Type	Adhesive	Height [z]	Height [z]	Width [x]	Width [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual [x]	Length - Actual [x]	Wire/Cable Tie Type	Length - Approximate	Tensile Strength	Tensile Strength	Width [y]	Width [y]	Length - Actual	Length - Actual	Length - Actual	For Use With/Related Products [Max]	For Use With/Related Products [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Essentra Access Solutions HG-14	Grommet	21.84 mm	0.86 in	Black	UL94 HB	0.063 in	1.6 mm	Thermoplastic Elastomer (TPE)	25.15 mm	0.99 in	Cable Wires
Essentra Access Solutions 495819				White				Polyolefin (PO) Irradiated				0.56 mm	0.022 "	-55 °C	125 °C	16.4 ft	5 m	Tubing Flexible	2 to 1	0.125 in	3.18 mm	Flame Retardant	0.25 in	6.35 mm	70 °C
Essentra Access Solutions 495745				Blue				Polyolefin (PO) Irradiated				0.33 mm	0.013 in	-55 °C	125 °C			Tubing Flexible	2 to 1			Flame Retardant	0.046 in	1.17 mm	70 °C	32.8 '	10 m	0.023 in	0.58 mm
Essentra Access Solutions 495709				Red				Polyolefin (PO) Irradiated				0.33 mm	0.013 in	-55 °C	125 °C			Tubing Flexible	2 to 1			Flame Retardant	0.046 in	1.17 mm	70 °C	492.1 ft	150 m	0.023 in	0.58 mm
Essentra Access Solutions ASK-6				Silver				Aluminum										Bendable Clip								0.74 in	18.8 mm			Adhesive	Polyurethane Based (RMS-99)	14.3 mm	0.563 in	0.62 in	15.75 mm
Essentra Access Solutions 1293375				Black																										Free Hanging (In-Line)				0.315 in	8 mm	160 mm	6.3 in	550 mm	1.804 ft	Locking Standard	21.75 "	51 lbs	23.13 kg
Essentra Access Solutions HG-3	Grommet	4.78 mm	0.188 in	Black	UL94 HB	0.032 in	0.81 mm	Thermoplastic Elastomer (TPE)			Cable Wires
Essentra Access Solutions 495692				Black				Polyolefin (PO) Irradiated				0.56 mm	0.022 "	-55 °C	125 °C			Tubing Flexible	2 to 1	0.187 in		Flame Retardant	0.374 in	9.5 mm	70 °C	246.1 ft	75 m	4.75 mm
Essentra Access Solutions 550259				Black				Nylon 6.6																						Edge Clip										Locking Standard	7.75 in			4.8 mm	0.189 in	200 mm	0.656 ft	7.87 "
Essentra Access Solutions 550248				Black				Nylon 6.6										Single Opening												Edge Mount																			4.8 mm	0.189 "	0.76 "	19.2 mm	0.59 in	20 mm	0.79 in	15.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 30.84
		2	$ 28.36
		3	$ 27.01
		5	$ 25.39

Description

General part information

- Series

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 2 to 1 White 16.4' (5.0m)
