1830198

Active

Phoenix Contact

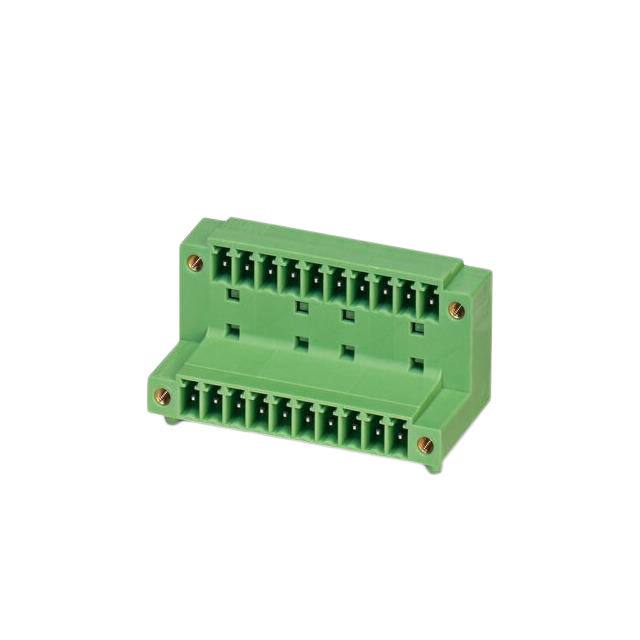

PLUGGABLE TERMINAL BLOCKS 11 POS 3.81MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 11 POS 3.81MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1830198

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	8 A
Current - UL	8 A
Features	Board Guide, Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.894 "
Insulation Height	22.71 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	22 positions
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	11
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V
Voltage - UL	300 V

Pluggable Terminal Blocks 4 Pos 2.5mm pitch Through Hole Header

Part	Positions Per Level	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Voltage - IEC	Current - IEC	Number of Positions	Color	Material Flammability Rating	Type	Features	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Current - UL	Header Orientation	Mounting Type	Voltage - UL	Contact Mating Finish	Housing Material	Number of Positions
Phoenix Contact 1830198	11	Solder	0.15 in	3.81 mm	2	320 V	8 A	22 positions	Green	UL94 V-0	Header Male Pins Shrouded (4 Side)	Board Guide Mating Flange	0.894 "	22.71 mm	3.5 mm	0.138 in	8 A	90° Right Angle	Through Hole	300 V	Tin	Polyamide (PA) Nylon
Phoenix Contact 1894862	8	Solder	0.098 in	2.5 mm	2	320 V	4 A		Green	UL94 V-0	Header Male Pins Shrouded (4 Side)		0.862 in	21.89 mm	3.81 mm	0.15 in	4 A	90° Right Angle	Through Hole	125 V	Tin	Polyamide (PA) Nylon	16
Phoenix Contact 1830075	14	Solder	0.15 in	3.81 mm	2	320 V	8 A	28	Green	UL94 V-0	Header Male Pins Shrouded (4 Side)		0.894 "	22.71 mm	3.5 mm	0.138 in	8 A	90° Right Angle	Through Hole	300 V	Tin	Polyamide (PA) Nylon
Phoenix Contact 1961164	4	Solder	0.098 in	2.5 mm	2	160 V	4 A	8	Black	UL94 V-0	Header Male Pins Shrouded (4 Side)		0.862 in	21.89 mm	3.81 mm	0.15 in		90° Right Angle	Through Hole		Tin	Polyamide (PA) Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 13.09
Sager	N/A	50	$ 15.40
		100	$ 14.85

General part information

Pluggable Terminal Blocks 4 Pos 2.5mm pitch Through Hole Header
