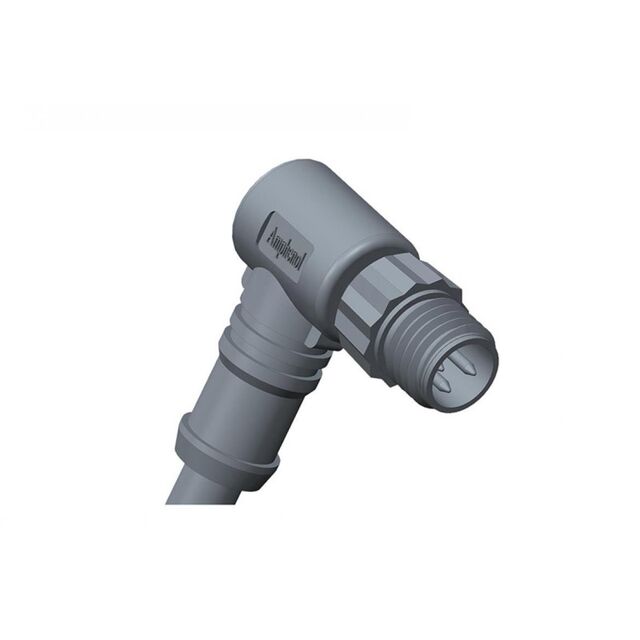

8P-03BMMM-SR7B10

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, PLASTIC, 3A, 03 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED

Deep-Dive with AI

Search across all available documentation for this part.

8P-03BMMM-SR7B10

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, PLASTIC, 3A, 03 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8P-03BMMM-SR7B10

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Shielding	Unshielded
Usage	Industrial Environments

8P-03BMMM Series

Part	1st Connector Number of Positions	Usage	Cable Material	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	2nd Connector Type	Assembly Configuration	1st Connector Gender	Cable Type	Ingress Protection	Shielding	Color	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol LTW 8P-03BMMM-SL7B05	3	Industrial Environments	Polyurethane (PUR)	Plug	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)
Amphenol LTW 8P-03BMMM-SL7A10	3	Industrial Environments	Polyvinyl Chloride (PVC)	Plug	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)
Amphenol LTW 8P-03BMMM-SR7A01	3	Industrial Environments	Polyvinyl Chloride (PVC)	Plug Right Angle	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)	1 m	3.28 ft
Amphenol LTW 8P-03BMMM-SR7B05	3	Industrial Environments	Polyurethane (PUR)	Plug Right Angle	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)
Amphenol LTW 8P-03BMMM-SR7B10	3	Industrial Environments	Polyurethane (PUR)	Plug Right Angle	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)
Amphenol LTW 8P-03BMMM-SL7A05	3	Industrial Environments	Polyvinyl Chloride (PVC)	Plug	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)	500 mm	1.64 ft
Amphenol LTW 8P-03BMMM-SL7A01	3	Industrial Environments	Polyvinyl Chloride (PVC)	Plug	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)	1 m	3.28 ft
Amphenol LTW 8P-03BMMM-SL7B01	3	Industrial Environments	Polyurethane (PUR)	Plug	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)	1 m	3.28 ft
Amphenol LTW 8P-03BMMM-SR7B01	3	Industrial Environments	Polyurethane (PUR)	Plug Right Angle	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)	1 m	3.28 ft
Amphenol LTW 8P-03BMMM-SR7A02	3	Industrial Environments	Polyvinyl Chloride (PVC)	Plug Right Angle	All	M8	Wire Leads	Standard	Male Pins	Round	IP67 - Dust Tight Waterproof	Unshielded	Black	Free Hanging (In-Line)	2 m	6.56 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 19.36
Newark	Each	10	$ 20.61
		25	$ 18.92
		50	$ 16.90
		100	$ 15.55
		250	$ 15.10

Description

General part information

8P-03BMMM Series

Circular Cable Assembly Unshielded 32.8' (10.00m)

Documents

Technical documentation and resources

No documents available
