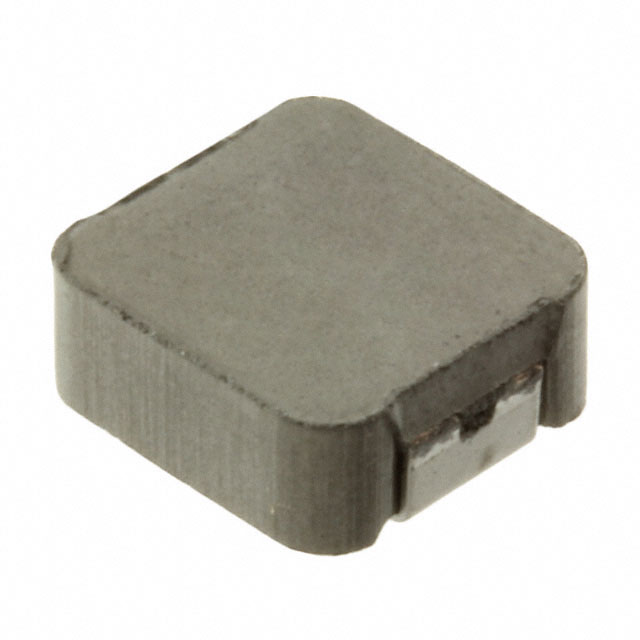

HM72E-064R7LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 4.7UH 5.4A 42 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HM72E-064R7LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 4.7UH 5.4A 42 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HM72E-064R7LFTR13

Current - Saturation (Isat)	6.5 A
Current Rating (Amps)	5.4 A
DC Resistance (DCR)	42 mOhm
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	4.7 ÁH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD
Shielding	Unshielded
Size / Dimension [x]	0.285 in
Size / Dimension [x]	7.23 mm
Size / Dimension [y]	6.8 mm
Size / Dimension [y]	0.268 in
Tolerance	20 %
Type	Molded

HM72E Series

Part	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Mounting Type	Tolerance	Current - Saturation (Isat)	Package / Case	Inductance	Current Rating (Amps)	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR)
TT Electronics/BI Magnetics HM72E-121R5HLFTR13	Molded	0.256 in	6.5 mm	3 mOhm	Surface Mount	20 %	27 A	Nonstandard	1.5 µH	27 A	Unshielded	13 mm	13.95 mm	0.512 in	0.549 "	100 kHz	-40 °C	155 °C
TT Electronics/BI Magnetics HM72E-061R5LFTR13	Molded			14 mOhm	Surface Mount	20 %	10 A	2-SMD	1.5 µH	8.4 A	Unshielded	6.8 mm	7.23 mm	0.268 in	0.285 in	100 kHz	-40 °C	155 °C	3 mm	0.118 in
TT Electronics/BI Magnetics HM72E-064R7LFTR13	Molded				Surface Mount	20 %	6.5 A	2-SMD	4.7 ÁH	5.4 A	Unshielded	6.8 mm	7.23 mm	0.268 in	0.285 in	100 kHz	-40 °C	155 °C	3 mm	0.118 in	42 mOhm
TT Electronics/BI Magnetics HM72E-06330LFTR13	Molded			332 mOhm	Surface Mount	20 %	2.5 A	2-SMD	33 µH	1.8 A	Unshielded	6.8 mm	7.23 mm	0.268 in	0.285 in	100 kHz	-40 °C	155 °C	3 mm	0.118 in
TT Electronics/BI Magnetics HM72E-06R33LFTR13	Molded			3.9 mOhm	Surface Mount	20 %	22 A	2-SMD	330 nH	18 A	Unshielded	6.8 mm	7.23 mm	0.268 in	0.285 in	100 kHz	-40 °C	155 °C	3 mm	0.118 in
TT Electronics/BI Magnetics HM72E-122R2HLFTR13	Molded	0.256 in	6.5 mm	4.2 mOhm	Surface Mount	20 %	24 A	Nonstandard	2.2 µH	22 A	Unshielded	13 mm	13.95 mm	0.512 in	0.549 "	100 kHz	-40 °C	155 °C
TT Electronics/BI Magnetics HM72E-123R3HLFTR13	Molded	0.256 in	6.5 mm	6.8 mOhm	Surface Mount	20 %	20 A	Nonstandard	3.3 µH	18 A	Unshielded	13 mm	13.95 mm	0.512 in	0.549 "	100 kHz	-40 °C	155 °C
TT Electronics/BI Magnetics HM72E-12100HLFTR13	Molded	0.256 in	6.5 mm	17.2 mOhm	Surface Mount	20 %	9 A	Nonstandard	10 µH	10 A	Unshielded	13 mm	13.95 mm	0.512 in	0.549 "	100 kHz	-40 °C	155 °C
TT Electronics/BI Magnetics HM72E-12200HLFTR13	Molded	0.256 in	6.5 mm	40.5 mOhm	Surface Mount	20 %	8 A	Nonstandard	20 µH	5 A	Unshielded	13 mm	13.95 mm	0.512 in	0.549 "	100 kHz	-40 °C	155 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.13

Description

General part information

HM72E Series

4.7 µH Unshielded Molded Inductor 5.4 A 42mOhm Max 2-SMD
