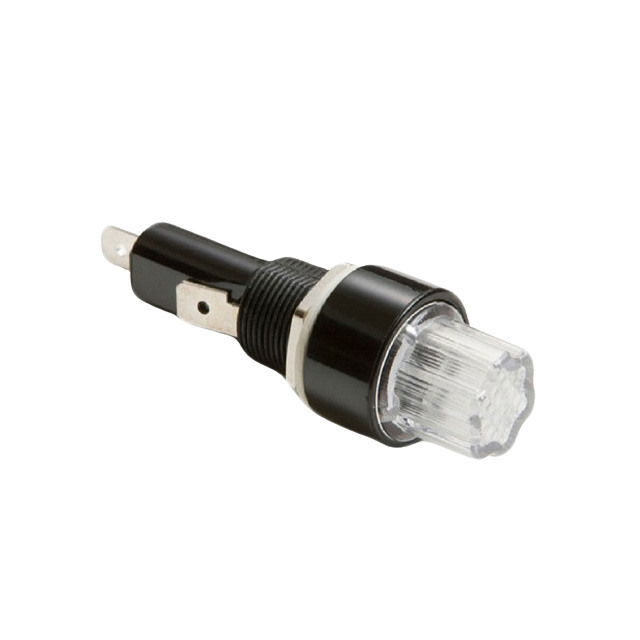

PMA-LS-AC1-Q2S

Active

OptiFuse

1-1/4"X1/4"-LED WARNING/SCREW,

Search across all available documentation for this part.

Active

OptiFuse

1-1/4"X1/4"-LED WARNING/SCREW,

Technical Specifications

Parameters and characteristics for this part

Specification	PMA-LS-AC1-Q2S

Contact Finish	Silver
Contact Material	Copper
Current Rating (Amps)	20 A
For Use With/Related Products	3AG
Fuse Size [diameter]	0.25 "
Fuse Size [diameter]	6.35 mm
Fuse Size [x]	32 mm
Fuse Size [x]	1.26 in
Fuse Type	Cartridge
Fuseholder Type	Holder
Number of Circuits	1
Orientation	Horizontal and Vertical
Voltage	250 V

Part	Number of Circuits	Fuse Size [x]	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [diameter]	Current Rating (Amps)	For Use With/Related Products	Contact Finish	Voltage	Fuse Type	Fuseholder Type	Orientation	Contact Material
OptiFuse PMA-LS-AC1-Q2S	1	32 mm	1.26 in	0.25 "	6.35 mm	20 A	3AG	Silver	250 V	Cartridge	Holder	Horizontal and Vertical	Copper
OptiFuse PMA-LS-DC1-Q2S	1	32 mm	1.26 in	0.25 "	6.35 mm	20 A	3AG	Silver	32 V	Cartridge	Holder	Horizontal and Vertical	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.86

General part information

Fuse Holder 20 A 250V 1 Circuit Cartridge Panel Mount
