0151310401

Active

Molex

CABLE-ASSY PICOLOCK 4 CIRCUIT 10

Search across all available documentation for this part.

Active

Molex

CABLE-ASSY PICOLOCK 4 CIRCUIT 10

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Shielding	Length	Length	Length	Contact Finish	Cable Termination	Number of Rows	Connector Type	Number of Positions	Features	Length [x]	Length [x]	Length [x]
Molex 0151310201	0.039 "	1 mm	Unshielded	100 mm	0.328 '	3.94 "	Gold	Crimp	1	Socket to Socket	2	Friction Lock
Molex 0151310402	0.039 "	1 mm	Unshielded	150 mm	0.492 ft	5.91 "	Gold	Crimp	1	Socket to Socket	4	Friction Lock
Molex 0151310401	0.039 "	1 mm	Unshielded	100 mm	0.328 '	3.94 "	Gold	Crimp	1	Socket to Socket	4	Friction Lock
Molex 0151310206	0.039 "	1 mm	Unshielded	600 mm	1.97 ft		Gold	Crimp	1	Socket to Socket	2	Friction Lock
Molex 0151310406	0.039 "	1 mm	Unshielded	600 mm	1.97 ft		Gold	Crimp	1	Socket to Socket	4	Friction Lock
Molex 0151310403	0.039 "	1 mm	Unshielded				Gold	Crimp	1	Socket to Socket	4	Friction Lock	0.984 '	11.81 "	300 mm
Molex 0151310202	0.039 "	1 mm	Unshielded	150 mm	0.492 ft	5.91 "	Gold	Crimp	1	Socket to Socket	2	Friction Lock
Molex 0151310205	0.039 "	1 mm	Unshielded				Gold	Crimp	1	Socket to Socket	2	Friction Lock	17.76 in		450 mm
Molex 0151310203	0.039 "	1 mm	Unshielded				Gold	Crimp	1	Socket to Socket	2	Friction Lock	0.984 '	11.81 "	300 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

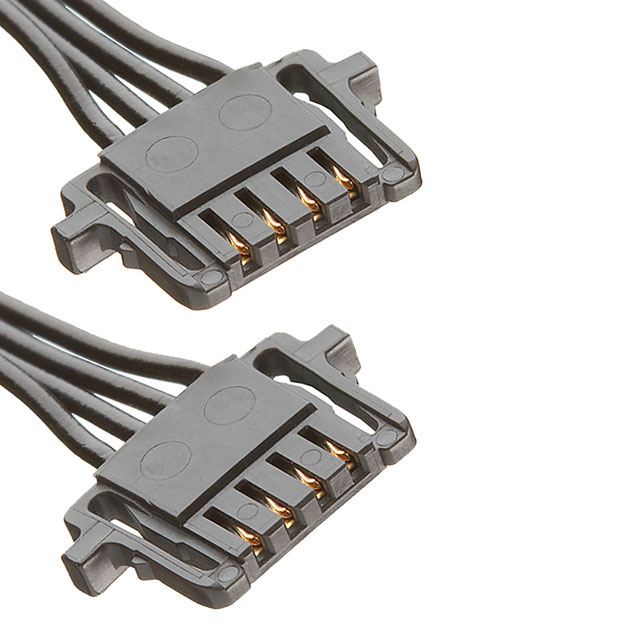

4 Position Cable Assembly Rectangular Socket to Socket 0.328' (100.00mm, 3.94")
