TS04-66-85-BK-260-SMT

Active

CUI Devices

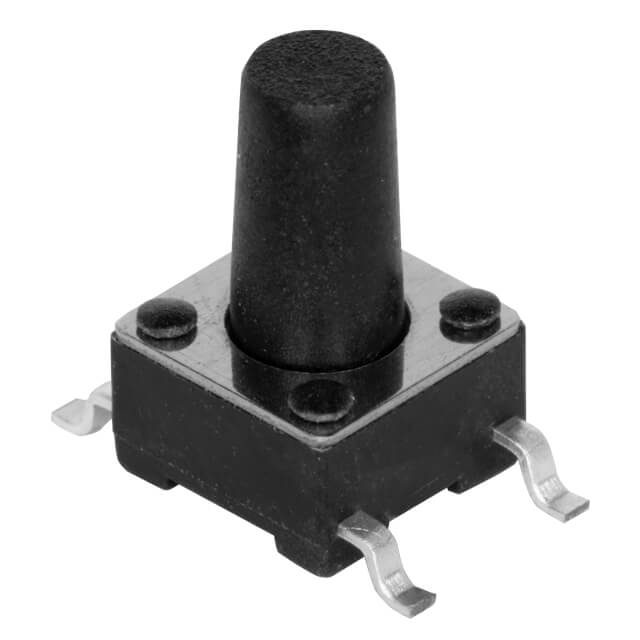

MICROSWITCH TACT; SPST; POS: 2; 50MA/12VDC; SMT; NONE; 2.6N; 6X6MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TS04-66-85-BK-260-SMT

Active

CUI Devices

MICROSWITCH TACT; SPST; POS: 2; 50MA/12VDC; SMT; NONE; 2.6N; 6X6MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TS04-66-85-BK-260-SMT

Actuator Height off PCB, Vertical	8.5 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	60000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

TS04-66 Series

Part	Mechanical Life	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Mounting Type	Illumination	Outline [y]	Outline [x]	Actuator Orientation	Actuator Material	Switch Travel	Actuator Type	Actuator Height off PCB, Vertical	Circuit	Operating Force	Termination Style	Actuator Height off PCB, Vertical [z]
CUI Devices TS04-66-65-BK-100-SMT-TR	100000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard	6.5 mm	SPST-NO	100 gf	Gull Wing
CUI Devices TS04-66-75-BK-160-SMT	80000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard		SPST-NO		Gull Wing	7.5 mm
CUI Devices TS04-66-55-BK-100-SMT	100000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard		SPST-NO	100 gf	Gull Wing	5.5 mm
CUI Devices TS04-66-75-BK-100-SMT	100000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard		SPST-NO	100 gf	Gull Wing	7.5 mm
CUI Devices TS04-66-43-BK-100-SMT	100000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard		SPST-NO	100 gf	Gull Wing	4.3 mm
CUI Devices TS04-66-50-BK-260-SMT	60000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard	5 mm	SPST-NO	260 gf	Gull Wing
CUI Devices TS04-66-43-BK-260-SMT	60000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard		SPST-NO	260 gf	Gull Wing	4.3 mm
CUI Devices TS04-66-70-BK-160-SMT	80000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard		SPST-NO		Gull Wing	7 mm
CUI Devices TS04-66-85-BK-260-SMT	60000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard	8.5 mm	SPST-NO	260 gf	Gull Wing
CUI Devices TS04-66-70-BK-260-SMT	60000 Cycles	0.05 A 12 VDC	-30 ░C	80 C	Off-Mom	Surface Mount	Non-Illuminated	6 mm	6 mm	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard		SPST-NO	260 gf	Gull Wing	7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.18
		10	$ 0.17
		25	$ 0.16
		100	$ 0.15
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.11
		3000	$ 0.10
		5000	$ 0.10

Description

General part information

TS04-66 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
