78Q2123S/F

Obsolete

Analog Devices Inc./Maxim Integrated

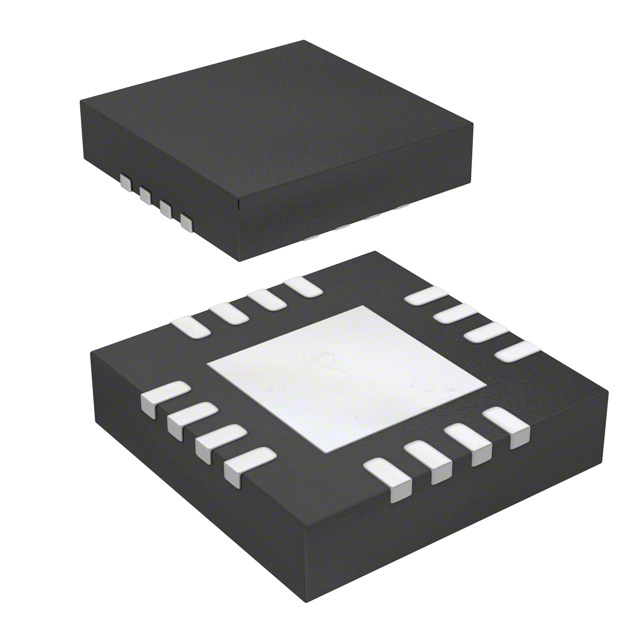

IC TRANSCEIVER FULL 1/1 16TQFN

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC TRANSCEIVER FULL 1/1 16TQFN

Technical Specifications

Parameters and characteristics for this part

Part	Receiver Hysteresis	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Mounting Type	Package / Case	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Type	Duplex	Supplier Device Package	Voltage - Supply	Supplied Contents	Utilized IC / Part	Function
Analog Devices Inc./Maxim Integrated 78Q2123/F	125 mV	3.6 V	3 V	4	4	Surface Mount	32-VFQFN Exposed Pad	IEEE 802.3	70 °C	0 °C	Transceiver	Full	32-QFN-EP (5x5)
Analog Devices Inc./Maxim Integrated 78Q2123S/F						Surface Mount	16-WQFN Exposed Pad	Ethernet	70 °C	0 °C	Transceiver	Full	16-TQFN (5x5)	3.3 V
Analog Devices Inc./Maxim Integrated 78Q2123R/F	125 mV	3.6 V	3 V	4	4	Surface Mount	32-VFQFN Exposed Pad	IEEE 802.3	70 °C	0 °C	Transceiver	Full	32-QFN-EP (5x5)
Analog Devices Inc./Maxim Integrated 78Q2123-DB											Interface				Board(s)	78Q2123	Ethernet PHY
Analog Devices Inc./Maxim Integrated 78Q2123SR/F						Surface Mount	16-WQFN Exposed Pad	Ethernet	70 °C	0 °C	Transceiver	Full	16-TQFN (5x5)	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1/1 Transceiver Full Ethernet 16-TQFN (5x5)

Technical documentation and resources

No documents available
