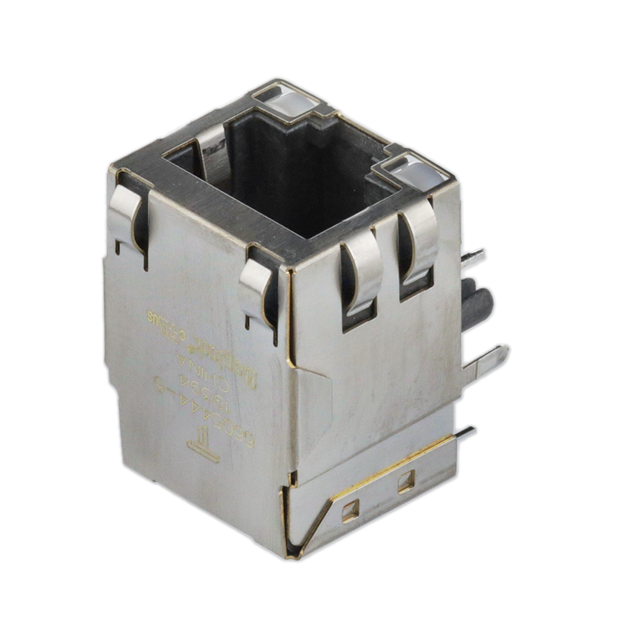

6605444-6
ActiveTRP Connector B.V.
CONN JACK 1PORT 1000 BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6605444-6
ActiveTRP Connector B.V.
CONN JACK 1PORT 1000 BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6605444-6 |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Height Above Board [z] | 14.1 mm |
| Height Above Board [z] | 0.555 in |
| Housing Material | Polyethylene Terephthalate (PET), Polyester |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 12 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.38 | |
| 10 | $ 13.63 | |||
| 25 | $ 13.10 | |||
| 40 | $ 12.58 | |||
| 80 | $ 11.88 | |||
| 385 | $ 10.83 | |||
| 770 | $ 9.58 | |||
Description
General part information
6605444 Series
1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
