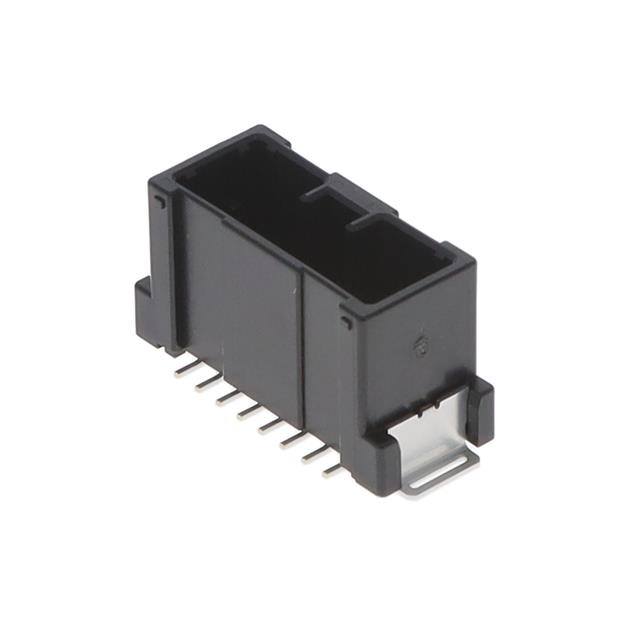

ZE05H-12DP-2V

Active

Hirose Electric USA, Inc.

CONN RCPT SMT VERT 2MM 12POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZE05H-12DP-2V

Active

Hirose Electric USA, Inc.

CONN RCPT SMT VERT 2MM 12POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZE05H-12DP-2V

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A, 2 A
Features	Solder Retention
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	60 VAC

ZE05H Series

Part	Contact Finish - Post	Contact Material	Contact Shape	Mounting Type	Contact Type	Termination	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]	Number of Rows	Style	Voltage Rating	Insulation Material	Number of Positions	Current Rating (Amps)	Connector Type	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Features	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
Hirose Electric USA, Inc. ZE05H-24DP-2V	Tin	Brass	Square	Surface Mount	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C	7 mm	0.276 in	2	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)	24	2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention
Hirose Electric USA, Inc. ZE05H-2P-2V	Tin	Brass	Square	Surface Mount	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C	7 mm	0.276 in	1	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)	2	2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention
Hirose Electric USA, Inc. ZE05H-12DP-2V	Tin	Brass	Square	Surface Mount	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C	7 mm	0.276 in	2	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)	12	2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention
Hirose Electric USA, Inc. ZE05H-12DP-2H	Tin	Brass	Square	Surface Mount Right Angle	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C			2	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)	12	2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention	8.84 mm	0.348 in	1 çm	39.4 çin	1 µm	39.4 µin
Hirose Electric USA, Inc. ZE05H-2P-2H	Tin	Brass	Square	Surface Mount Right Angle	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C	37 mm	1.457 "	1	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)	2	2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention
Hirose Electric USA, Inc. ZE05H-8DP-2V	Tin	Brass	Square	Surface Mount	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C	7 mm	0.276 in	2	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)	8	2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention
Hirose Electric USA, Inc. ZE05H-5P-2H	Tin	Brass	Square	Surface Mount Right Angle	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C	37 mm	1.457 "	1	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)		2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention
Hirose Electric USA, Inc. ZE05H-16DP-2H	Tin	Brass	Square	Surface Mount Right Angle	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C			2	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)		2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention	8.84 mm	0.348 in					16
Hirose Electric USA, Inc. ZE05H-20DP-2H	Tin	Brass	Square	Surface Mount Right Angle	Male Pin	Solder	Shrouded - 4 Wall	125 °C	-40 °C			2	Board to Cable/Wire	60 VAC	Nylon Polyamide (PA)	20	2 A 5 A	Header	Black	All	UL94 V-0	0.079 in	2 mm	Solder Retention	8.84 mm	0.348 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.45
		10	$ 2.14
		25	$ 2.05
		50	$ 2.00
		100	$ 1.91
	Digi-Reel®	1	$ 2.45
		10	$ 2.14
		25	$ 2.05
		50	$ 2.00
		100	$ 1.91
	Tape & Reel (TR)	250	$ 1.73
		500	$ 1.59
		750	$ 1.55
		1250	$ 1.36
		1750	$ 1.32
		2500	$ 1.27
		6250	$ 1.21

Description

General part information

ZE05H Series

Connector Header Surface Mount 12 position 0.079" (2.00mm)
