10-452-A6

Active

Coax Connectors Ltd

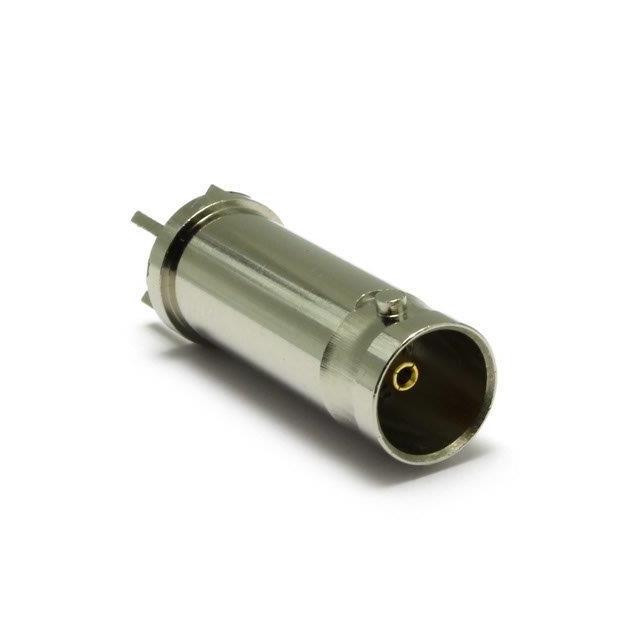

BNC VERTICAL PCB MOUNT JACK, 75

Search across all available documentation for this part.

Active

Coax Connectors Ltd

BNC VERTICAL PCB MOUNT JACK, 75

Technical Specifications

Parameters and characteristics for this part

Specification	10-452-A6

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Shield Termination	Impedance	Contact Termination	Ingress Protection	Connector Style	Dielectric Material	Connector Type	Mounting Type	Body Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Housing Color	Center Contact Material	Mating Cycles	Body Finish	Frequency - Max [Max]	Center Contact Plating
Coax Connectors Ltd 10-452-A6	Solder	75 Ohms	Solder	IP64 - Dust Tight Water Resistant	BNC	Polyoxymethylene (POM)	Female Socket Jack	Through Hole	Brass	Bayonet Lock	155 °C	-55 °C	1	Silver	Phosphor Bronze	500	Nickel	1 GHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
