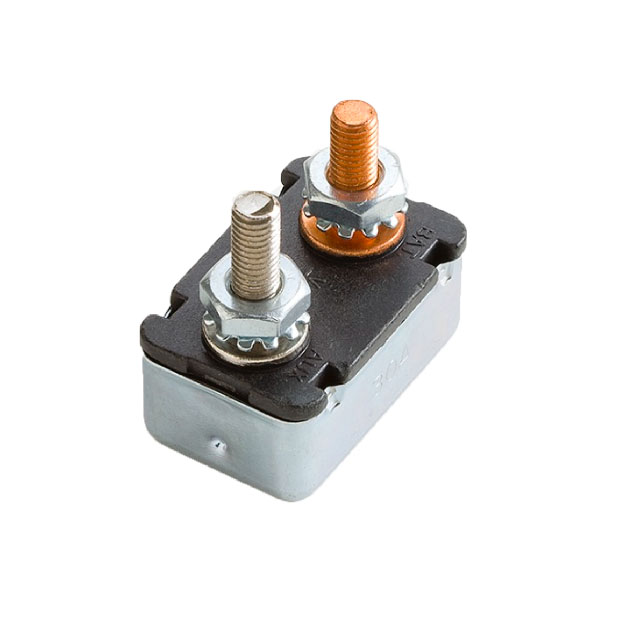

ACB-24-N-20A
ActiveOptiFuse
NO BRACKET-TYPE I AUTO, 20A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACB-24-N-20A
ActiveOptiFuse
NO BRACKET-TYPE I AUTO, 20A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACB-24-N-20A |
|---|---|
| Actuator Type | Automatic Reset |
| Approval Agency | SAEJ553 |
| Breaker Type | Shortstop |
| Current Rating (Amps) | 20 A |
| Illumination | None |
| Number of Poles | 1 |
| Voltage Rating - DC | 24 V |
ACB-24 Series
| Part | Actuator Type | Illumination | Approval Agency | Voltage Rating - DC | Current Rating (Amps) | Breaker Type | Number of Poles |
|---|---|---|---|---|---|---|---|
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 30 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 15 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 20 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 40 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 40 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 20 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 25 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 50 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 20 A | Shortstop | 1 |
OptiFuse | Automatic Reset | None | SAEJ553 | 24 V | 25 A | Shortstop | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.88 | |
| 10 | $ 3.65 | |||
| 25 | $ 3.42 | |||
| 50 | $ 3.18 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.86 | |||
| 500 | $ 2.77 | |||
| 1000 | $ 2.68 | |||
Description
General part information
ACB-24 Series
Circuit Breaker Shortstop 20A AC 24 V DC Automatic Reset
