SFV27R-3STE1HLF

Active

Amphenol ICC (FCI)

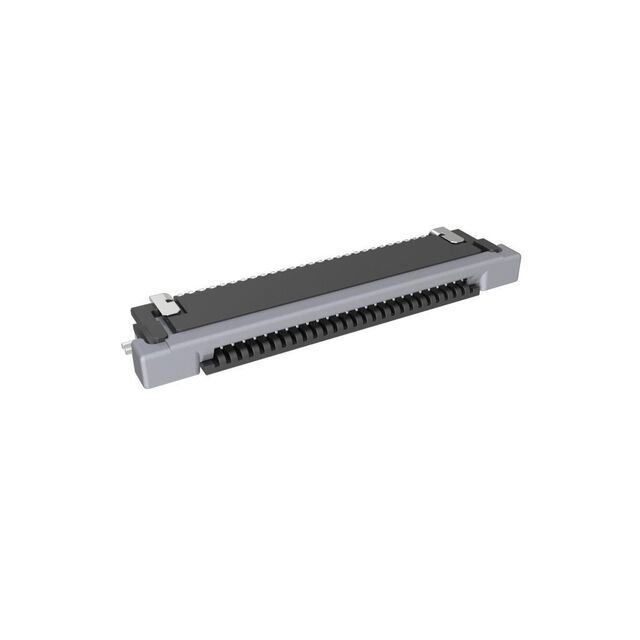

CONN FPC BOTTOM 27POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFV8R-4STBE1HLF SFV16R-3STE1HLF +2

SFV27R-3STE1HLF

Active

Amphenol ICC (FCI)

CONN FPC BOTTOM 27POS 0.5MM R/A

Deep-Dive with AI

DocumentsSFV8R-4STBE1HLF SFV16R-3STE1HLF +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV27R-3STE1HLF

Actuator Color	Brown
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Tapered, Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock, Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	27
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV27R Series

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Material Flammability Rating	Actuator Material	Voltage Rating	FFC, FCB Thickness	Height Above Board	Height Above Board	Locking Feature	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Contact Finish	Cable End Type	Housing Color	Connector/Contact Type	Mating Cycles	Actuator Color	Current Rating (Amps)	Contact Material	Flat Flex Type	FFC, FCB Thickness [z]	Features
Amphenol ICC (FCI) SFV27R-2STE1HLF	Solder	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V	0.33 mm	1.8 mm	0.071 in	Slide Lock	0.5 mm	0.02 in	27	Surface Mount Right Angle	Tin	Tapered	Black	Contacts Top	20	Brown	0.5 A	Phosphor Bronze	FFC FPC
Amphenol ICC (FCI) SFV27R-3STE1HLF	Solder	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V	0.3 mm	1.8 mm	0.071 in	Flip Lock Slide Lock	0.5 mm	0.02 in	27	Surface Mount Right Angle	Tin	Notched Tapered	Black	Contacts Bottom	20	Brown	0.5 A	Phosphor Bronze	FPC
Amphenol ICC (FCI) SFV27R-1STE1HLF	Solder	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V		1.8 mm	0.071 in	Slide Lock	0.5 mm	0.02 in	27	Surface Mount Right Angle	Tin	Straight Tapered	Black	Contacts Bottom	20	Black	0.5 A	Phosphor Bronze	FFC FPC	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV27R-4STE1HLF	Solder	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V		1.8 mm	0.071 in	Slide Lock	0.5 mm	0.02 in	27	Surface Mount Right Angle	Tin	Notched	Black	Contacts Top	20	Brown	0.5 A	Phosphor Bronze	FPC	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV27R-1STBE1HLF	Solder	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V		1.8 mm	0.071 in	Slide Lock	0.5 mm	0.02 in	27	Surface Mount Right Angle	Gold	Tapered	Black	Contacts Bottom	20	Brown	0.5 A	Phosphor Bronze	FFC FPC	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV27R-2STAE1HLF	Solder	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V		1.8 mm	0.071 in	Slide Lock	0.5 mm	0.02 in	27	Surface Mount Right Angle	Gold	Notched	Black	Contacts Top	20	Brown	0.5 A	Phosphor Bronze	FFC FPC	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV27R-2STBE1HLF	Solder	105 ░C	-55 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V	0.3 mm	1.8 mm	0.071 in	Slide Lock	0.5 mm	0.02 in	27	Surface Mount Right Angle	Gold	Tapered	Black	Contacts Top	20	Brown	0.5 A	Phosphor Bronze	FFC FPC		Solder Retention Zero Insertion Force (ZIF)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SFV27R Series

27 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

SFV27R-3STE1HLF

Deep-Dive with AI

SFV27R-3STE1HLF

Deep-Dive with AI

Technical Specifications

SFV27R Series

Pricing

Description

SFV27R Series

Documents

SFV8R-4STBE1HLF

SFV16R-3STE1HLF

fci basics ffc fpc productpresentation Other Related Document

Datasheet

SFV27R Series
