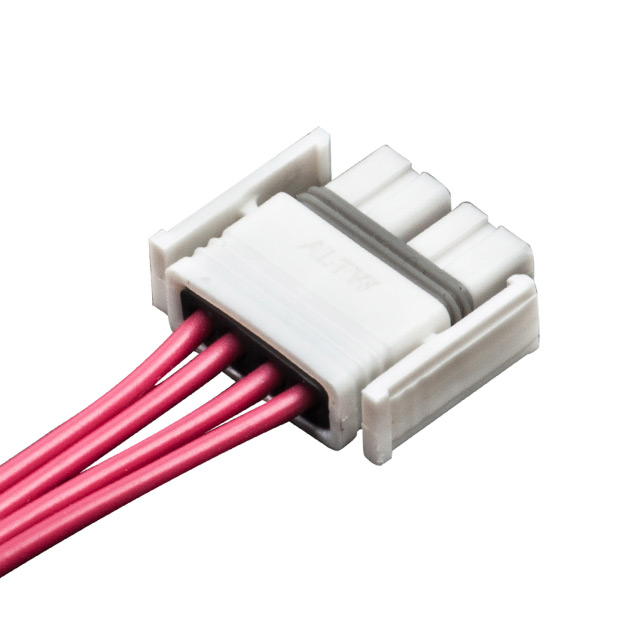

SSL12-P4LP0-M20A04

Active

Amphenol LTW

SSL1.2 WIRE ASSEMBLY,5A 4PIN, PL

Deep-Dive with AI

Search across all available documentation for this part.

SSL12-P4LP0-M20A04

Active

Amphenol LTW

SSL1.2 WIRE ASSEMBLY,5A 4PIN, PL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSL12-P4LP0-M20A04

1st Connector	Plug
1st Connector	4 Position
2nd Connector	Wire Leads
Color	Multiple
Features	Latch Lock, Industrial Environments - IP68
Length	400 mm
Length	15.7 in

SSL12 Series

Part	Color	2nd Connector	Length [x]	Length [x]	Features	1st Connector	1st Connector	Number of Positions	Style	Housing Color	Fastening Type	Connector Type	Mating Cycles	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]	Ingress Protection	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Housing Material	Length	Length	Contact Finish	Contact Material
Amphenol LTW SSL12-P4LP0-M20F01	White	Wire Leads	1 m	39.4 in	Industrial Environments - IP68 Latch Lock	Plug	4 Position
Amphenol LTW SSL12-P4FP0-M00001								4	Cable/Wire to Cable/Wire or Board	White	Latch Lock	Plug Housing for Socket Contact	30	250 VDC	20 AWG	22 AWG	IP68 - Dust Tight Waterproof	5 A	Free Hanging (In-Line)	-40 °C	105 ░C	Crimp	Thermoplastic
Amphenol LTW SSL12-P2LP0-M20A04	Brown Red	Wire Leads			Latch Lock	Plug	2																	400 mm	15.7 in
Amphenol LTW SSL12-J2LJ0-020A04	Brown Red	Wire Leads			Latch Lock	Socket	2																	400 mm	15.7 in
Amphenol LTW SSL12-J2LJ0-020A01	Brown Red	Wire Leads			Industrial Environments - IP68	Socket	2																	100 mm	3.94 in
Amphenol LTW SSL12-J4D00-000001					Pick and Place Solder Retention			4	Board to Board Cable	Natural	Detent Lock	Jack Housing for Pin Contact		250 VDC			IP68	5 A	Surface Mount	-40 °C	105 ░C	Solder	Thermoplastic			Gold	Copper Alloy
Amphenol LTW SSL12-J4FJ0-000001								4	Cable/Wire to Cable/Wire	White	Locking Ramp	Jack Housing for Pin Contact	30	250 VDC	20 AWG	22 AWG	IP68 - Dust Tight Waterproof	5 A	Free Hanging (In-Line)	-40 °C	105 ░C	Crimp	Thermoplastic
Amphenol LTW SSL12-P4LP0-M20A04	Multiple	Wire Leads			Industrial Environments - IP68 Latch Lock	Plug	4 Position																	400 mm	15.7 in
Amphenol LTW SSL12-P2LP0-M20H01	Black	Wire Leads	1 m	39.4 in	Industrial Environments - IP68 Latch Lock	Plug	2
Amphenol LTW SSL12-J2LJ0-020H01	Black	Wire Leads	1 m	39.4 in	Industrial Environments - IP68	Socket	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.81
		10	$ 1.57
		25	$ 1.50
		50	$ 1.47
		100	$ 1.40
		250	$ 1.27
		500	$ 1.18

Description

General part information

SSL12 Series

SSL Cable Assembly Plug, 4 Position To Wire Leads Multiple 15.7" (400.0mm)

Documents

Technical documentation and resources

No documents available
