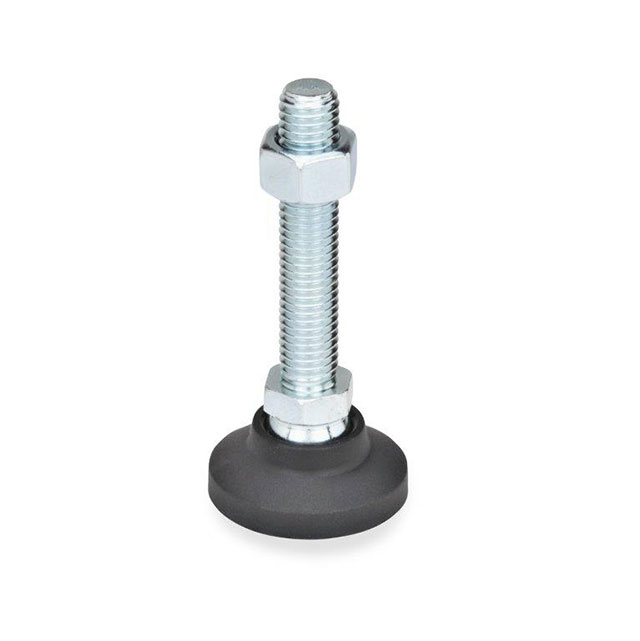

8N40M91

Active

J.W. Winco

STEEL LEVELING FEET

Search across all available documentation for this part.

Active

J.W. Winco

STEEL LEVELING FEET

Technical Specifications

Parameters and characteristics for this part

Specification	8N40M91

Color	Black
Material	Plastic
Mounting Type	Threaded Stud
Shape	Cylindrical, Recessed Center
Size / Dimension [diameter]	32 mm
Size / Dimension [diameter]	1.26 "
Thickness	0.2 in
Thickness	200 mils
Type	Foot

Part	Type	Color	Shape	Material	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Thickness	Thickness	Diameter [diameter]	Diameter [diameter]	Style	Indicator [custom]	Shaft Size	Height [z]	Height [z]
J.W. Winco 8N40A11/D	Adjustable Lever
J.W. Winco 8N40M91	Foot	Black	Cylindrical Recessed Center	Plastic	32 mm	1.26 "	Threaded Stud	0.2 in	200 mils
J.W. Winco 8N40A32/D	Adjustable Lever
J.W. Winco 8N40F50	Knurled Straight	Black								29.97 mm	1.18 in	Cylindrical	No Indicator	M8	0.71 in	18.03 mm
J.W. Winco 8N40F34K	Adjustable Lever	Black
J.W. Winco 8N40SA1/ST	4 Arm	Black		Plastic						39.88 mm	1.57 in	Clamping	No Indicator	M8	0.98 in	24.89 mm
J.W. Winco 5334-40-M8-40	5 Arm			Metal						39.88 mm	1.57 in	Clamping	No Indicator	M8	0.94 in	23.88 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.97

General part information

Foot Cylindrical, Recessed Center 1.260" Dia (32.00mm) Plastic Black
