9A0812L4D01

Active

Sanyo Denki America Inc.

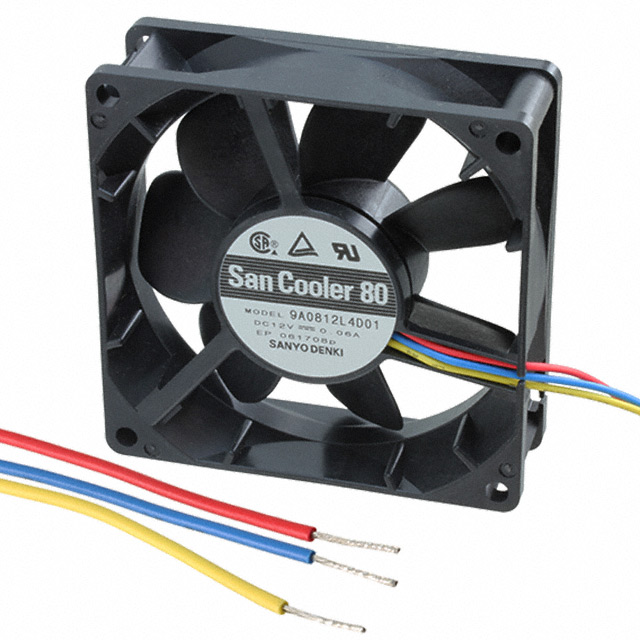

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

9A0812L4D01

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9A0812L4D01

Air Flow	0.644 m³/min
Air Flow	23 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	20 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	720 mW
RPM	1850 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.059 in H2O
Static Pressure	14.7 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	90.26 g
Weight	0.199 lb
Width [y]	25 mm

9A0812 Series

Part	Static Pressure	Static Pressure	RPM	Termination	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Current Rating (Amps)	Weight	Weight	Lifetime @ Temp.	Air Flow	Air Flow	Noise	Approval Agency	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Features	Power (Watts)	Material - Frame	Bearing Type	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]
Sanyo Denki America Inc. 9A0812F4D011	0.114 in H2O	28.4 Pa	2600 RPM	3 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	110 mA	90.26 g	0.199 lb	40000 Hrs	0.91 mł/min	32.5 CFM	26 dB	CSA TUV UL	12 VDC	80 mm	80 mm	Locked Rotor Sensor	1.32 W	Plastic	Ball	25 mm	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812G4011	0.323 in H2O	80.4 Pa	4500 RPM	3 Wire Leads	Plastic	-20 °C	60 °C	-20 C	60 °C	Tubeaxial	0.38 A	90.26 g	0.199 lb		1.48 mł/min	53 CFM	40 dB(A)	CSA TUV UL	12 VDC	80 mm	80 mm	Locked Rotor Protection Speed Sensor (Tach)	4.56 W	Plastic	Ball	25 mm
Sanyo Denki America Inc. 9A0812H402	0.142 in H2O	35.4 Pa	2900 RPM	2 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial		90.26 g	0.199 lb	40000 Hrs	1.02 m³/min	36.4 CFM	29 dB(A)	CSA TUV UL	12 VDC	80 mm	80 mm		1.56 W	Plastic	Ball	25 mm	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812L4021	0.059 in H2O	14.7 Pa	1850 RPM	2 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	60 mA	90.26 g	0.199 lb	40000 Hrs	0.644 m³/min	23 CFM	20 dB	CSA TUV UL	12 VDC	80 mm	80 mm		720 mW	Plastic	Ball	25 mm	13.8 VDC	7 V
Sanyo Denki America Inc. 9A0812M4D011	0.09 in H2O	22.4 Pa	2350 RPM	3 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.09 A	90.26 g	0.199 lb	40000 Hrs	0.82 m³/min	29.3 CFM	23 dB(A)	CSA TUV UL	12 VDC	80 mm	80 mm	Locked Rotor Sensor	1.08 W	Plastic	Ball	25 mm	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812S4011	0.193 in H2O	48.1 Pa	3400 RPM	3 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.18 A	90.26 g	0.199 lb	40000 Hrs			34 dB(A)	CSA TUV UL	12 VDC	80 mm	80 mm	Locked Rotor Protection Speed Sensor (Tach)	2.16 W	Plastic	Ball	25 mm	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812L4D01	0.059 in H2O	14.7 Pa	1850 RPM	3 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	60 mA	90.26 g	0.199 lb	40000 Hrs	0.644 m³/min	23 CFM	20 dB	CSA TUV UL	12 VDC	80 mm	80 mm	Locked Rotor Sensor	720 mW	Plastic	Ball	25 mm	13.8 VDC	7 V
Sanyo Denki America Inc. 9A0812M4021	0.09 in H2O	22.4 Pa	2350 RPM	2 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.09 A	90.26 g	0.199 lb	40000 Hrs	0.82 m³/min	29.3 CFM	23 dB(A)	CSA TUV UL	12 VDC	80 mm	80 mm		1.08 W	Plastic	Ball	25 mm	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812E4011			3700 RPM	3 Wire Leads	Plastic	-10 °C		-10 °C	60 °C	Tubeaxial	0.24 A	90.26 g	0.199 lb				33 dB(A)		12 VDC	80 mm	80 mm	Locked Rotor Protection Speed Sensor (Tach)		Plastic	Ball	25 mm	13.8 VDC	6 VDC	60 °C
Sanyo Denki America Inc. 9A0812F4011	0.114 in H2O	28.4 Pa	2600 RPM	3 Wire Leads	Plastic	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	110 mA	90.26 g	0.199 lb	40000 Hrs	0.91 mł/min	32.5 CFM	26 dB	CSA TUV UL	12 VDC	80 mm	80 mm	Locked Rotor Protection Speed Sensor (Tach)	1.32 W	Plastic	Ball	25 mm	13.8 VDC	6 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.77
		10	$ 13.14
		40	$ 12.36
		80	$ 11.89
		120	$ 10.95
		280	$ 10.25
		520	$ 10.09

Description

General part information

9A0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 23.0 CFM (0.644m³/min) 3 Wire Leads
