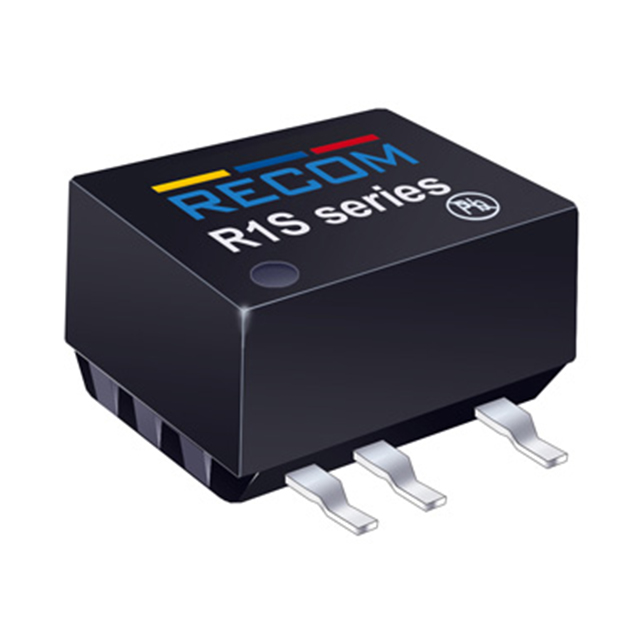

R1S-3.309

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 1W DC/DC 1KV UNREG 3.3VIN 9VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R1S-3.309

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 1W DC/DC 1KV UNREG 3.3VIN 9VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1S-3.309

Applications	ITE (Commercial)
Efficiency	78 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SMD Module, 5 Leads
Size / Dimension [x]	12.8 mm
Size / Dimension [x]	0.5 in
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	7 mm
Size / Dimension [z]	0.28 "
Type	Isolated Module
Voltage - Input (Max) [Max]	3.6 V
Voltage - Input (Min) [Min]	3 V
Voltage - Isolation	1000 V
Voltage - Output 1	9 V

R1S12-3.33.3 Series

Isolated DC/DC Converters - SMD 1W DC/DC 1kV UNREG 12Vin 12Vout

...

Part	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Applications	Efficiency	Voltage - Output 1	Package / Case	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Features	Type	Size / Dimension [y]	Size / Dimension [z]
RECOM Power R1S12-153.3/H-R	303 mA	3000 V	1	ITE (Commercial) Medical	75 %	3.3 V	10 Leads	12-SMD Module	Surface Mount	100 °C	-40 °C	13.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	16.5 V	SCP	Isolated Module
RECOM Power R1S8-2424/P	42 mA	1000 V	1	ITE (Commercial)	84 %	24 V		8-SMD Module	Surface Mount	100 °C	-40 °C	21.6 V		0.28 "	12.8 mm		0.5 in	0.42 "	26.4 V	SCP	Isolated Module	10.7 mm	7 mm
RECOM Power R1S12-1512/HP	84 mA	3000 V	1	ITE (Commercial) Medical	80 %	12 V	10 Leads	12-SMD Module	Surface Mount	100 °C	-40 °C	13.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	16.5 V	SCP	Isolated Module
RECOM Power R1S-3.309		1000 V	1	ITE (Commercial)	78 %	9 V		8-SMD Module 5 Leads	Surface Mount	100 °C	-40 °C	3 V		0.28 "	12.8 mm		0.5 in	0.42 "	3.6 V	SCP	Isolated Module	10.7 mm	7 mm
RECOM Power R1S12-0515/H	66 mA	3000 V	1	ITE (Commercial) Medical		15 V	10 Leads	12-SMD Module	Surface Mount	100 °C	-40 °C	4.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5.5 V	SCP	Isolated Module
RECOM Power R1S12-053.3-R	303 mA	1000 V	1	ITE (Commercial)	75 %	3.3 V	10 Leads	12-SMD Module	Surface Mount	100 °C	-40 °C	4.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5.5 V	SCP	Isolated Module
RECOM Power R1S12-2424/P-R	42 mA	1000 V	1	ITE (Commercial)	84 %	24 V	10 Leads	12-SMD Module	Surface Mount	100 °C	-40 °C	21.6 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	26.4 V	SCP	Isolated Module
RECOM Power R1S8-1215/P	66 mA	1000 V	1	ITE (Commercial)		15 V		8-SMD Module	Surface Mount	100 °C	-40 °C	10.8 V		0.28 "	12.8 mm		0.5 in	0.42 "	13.2 V	SCP	Isolated Module	10.7 mm	7 mm
RECOM Power R1S12-0509-R		1000 V	1	ITE (Commercial)	78 %	9 V	10 Leads	12-SMD Module	Surface Mount	100 °C	-40 °C	4.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5.5 V	SCP	Isolated Module
RECOM Power R1S-3.305/EP	200 mA	1000 V	1	ITE (Commercial)	80 %	5 V		8-SMD Module 5 Leads	Surface Mount	100 °C	-40 °C	2.97 V	10.7 mm	0.26 "	12.8 mm	6.7 mm	0.5 in	0.42 "	3.63 V	SCP	Isolated Module
