CONN D-TYPE RCPT 160POS R/A SLDR

Search across all available documentation for this part.

Obsolete

Molex

CONN D-TYPE RCPT 160POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	0051241040

Color	Black
Connector Style	Board to Board, Matrix, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Contact Type	Signal
Dielectric Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	160
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05
Termination	Solder
Voltage Rating	40 V

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Dielectric Material	Connector Type	Material Flammability Rating	Number of Positions	Voltage Rating	Mounting Type	Features	Flange Feature	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material	Shell Material, Finish	Contact Termination	Termination Finish	Termination Finish Thickness	Termination Finish Thickness	Type	Contact Form
Molex 0051241040	Black	-20 C	80 C	Signal	Solder	Liquid Crystal Polymer (LCP) Glass Filled	Receptacle Female Sockets	UL94 V-0	160	40 V	Through Hole Right Angle	Board Lock Shielded	Housing/Shell (M3)	Board to Board D-Type Matrix	0.05	0.05	0.76 Ám	30 Áin	Gold	Beryllium Copper
Molex 0051241030	Black	-20 C	80 C	Signal	Solder	Liquid Crystal Polymer (LCP) Glass Filled	Receptacle Female Sockets	UL94 V-0	160	40 V	Panel Mount Through Hole	Shielded	Housing/Shell (M3)	Board to Board D-Type Matrix	0.05	0.05	0.76 Ám	30 Áin	Gold	Beryllium Copper	Nickel Plated Steel
Molex 0051242022				Male Pin								Matrix Terminal Strip					0.76 Ám	30 Áin	Gold	Phosphor Bronze		PCB Solder	Tin	2.54 µm	100 µin	Signal	Stamped

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

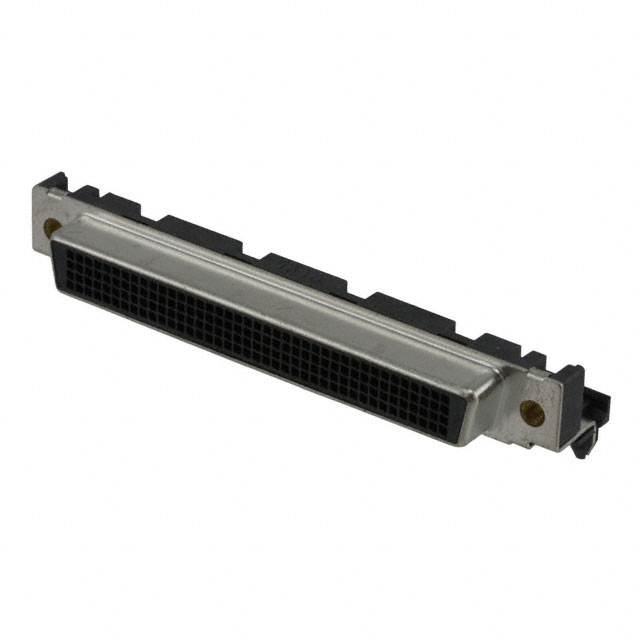

160 Position D-Type, Board to Board, Matrix Receptacle, Female Sockets Connector
