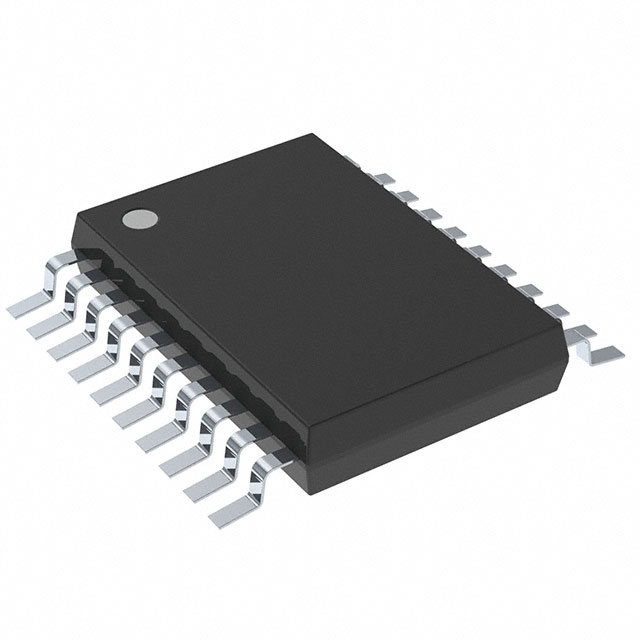

BD35221EFV-E2

Obsolete

Rohm Semiconductor

IC REG LINEAR 1.2V 4A 20HTSSOP

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

IC REG LINEAR 1.2V 4A 20HTSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	BD35221EFV-E2

Control Features	Soft Start, Enable
Current - Output	4 A
Current - Quiescent (Iq)	1.4 mA
Current - Supply (Max) [Max]	2.2 mA
Mounting Type	Surface Mount
Number of Regulators	1
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	4.4 mm, 0.173 in
Package / Case	20-VSSOP, Exposed Pad
Protection Features	Under Voltage Lockout (UVLO), Over Temperature, Over Current
Supplier Device Package	20-HTSSOP-B
Voltage - Input (Max) [Max]	4.5 V
Voltage - Output (Min/Fixed)	1.2 V

Part	Current - Output	Protection Features	Current - Quiescent (Iq)	Supplier Device Package	Voltage - Input (Max) [Max]	Number of Regulators	Current - Supply (Max) [Max]	Output Type	Control Features	Package / Case	Package / Case	Mounting Type	Voltage - Output (Min/Fixed)	Output Configuration
Rohm Semiconductor BD35221EFV-E2	4 A	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.4 mA	20-HTSSOP-B	4.5 V	1	2.2 mA	1.81 mOhm	Enable Soft Start	0.173 in 4.4 mm	20-VSSOP Exposed Pad	Surface Mount	1.2 V	Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 4A 20-HTSSOP-B

Technical documentation and resources

No documents available
