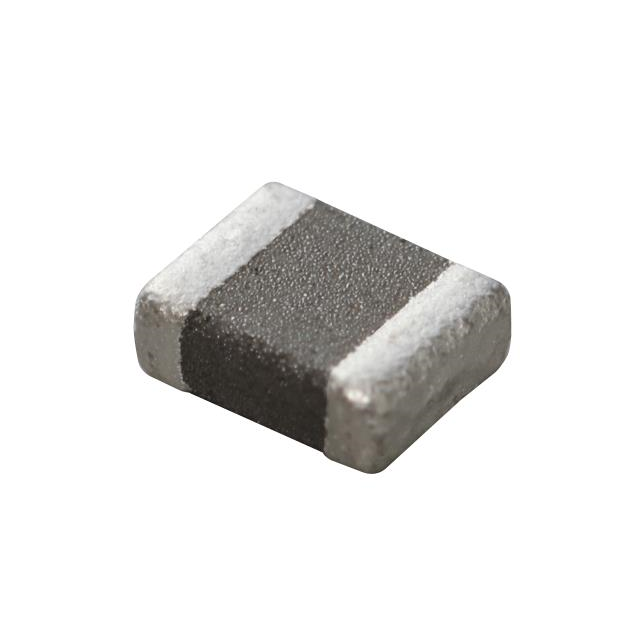

DFE2HCAHR33MJ0L
ActiveMurata Power Solutions Inc.
FIXED IND 330NH 4.9A 21 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DFE2HCAHR33MJ0L
ActiveMurata Power Solutions Inc.
FIXED IND 330NH 4.9A 21 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DFE2HCAHR33MJ0L |
|---|---|
| Current - Saturation (Isat) | 5.8 A |
| Current Rating (Amps) | 4.9 A |
| DC Resistance (DCR) [Max] | 21 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 330 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Package / Case | 1008 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Supplier Device Package | 1008 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.41 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.24 | ||
Description
General part information
DFE2HCAH Series
330 nH Shielded Drum Core, Wirewound Inductor 4.9 A 21mOhm Max 1008 (2520 Metric)
