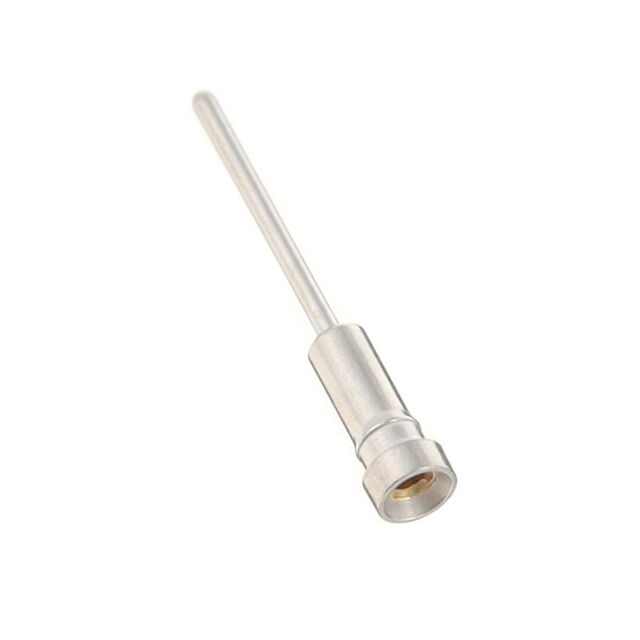

0132-0-15-80-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0132-0-15-80-30-27-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	11.33 mm
Length - Overall [x]	0.446 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Press-Fit

0132-0 Series

Part	Tail Diameter [diameter]	Tail Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Tail Type
Mill-Max Manufacturing Corp. 0132-0-15-01-30-14-04-0	0.02 in	0.51 mm	0.057 "	1.45 mm	-55 °C	125 °C	1.83 mm	0.072 in	Press-Fit	11.33 mm	0.446 in	3.81 mm	0.15 in	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	10 Áin	0.25 Ám	Beryllium Copper	Standard Tail
Mill-Max Manufacturing Corp. 0132-0-15-80-30-27-04-0	0.02 in	0.51 mm	0.057 "	1.45 mm	-55 °C	125 °C	1.83 mm	0.072 in	Press-Fit	11.33 mm	0.446 in	3.81 mm	0.15 in	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	30 Áin	0.76 Ám	Beryllium Copper	Standard Tail
Mill-Max Manufacturing Corp. 0132-0-15-15-30-27-04-0	0.02 in	0.51 mm	0.057 "	1.45 mm	-55 °C	125 °C	1.83 mm	0.072 in	Press-Fit	11.33 mm	0.446 in	3.81 mm	0.15 in	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	30 Áin	0.76 Ám	Beryllium Copper	Standard Tail
Mill-Max Manufacturing Corp. 0132-0-15-15-30-14-04-0	0.02 in	0.51 mm	0.057 "	1.45 mm	-55 °C	125 °C	1.83 mm	0.072 in	Press-Fit	11.33 mm	0.446 in	3.81 mm	0.15 in	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	10 Áin	0.25 Ám	Beryllium Copper	Standard Tail
Mill-Max Manufacturing Corp. 0132-0-15-80-30-14-04-0	0.02 in	0.51 mm	0.057 "	1.45 mm	-55 °C	125 °C	1.83 mm	0.072 in	Press-Fit	11.33 mm	0.446 in	3.81 mm	0.15 in	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	10 Áin	0.25 Ám	Beryllium Copper	Standard Tail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.28
		10	$ 1.08
		25	$ 1.04
		50	$ 1.02
		100	$ 0.97
		250	$ 0.88
		500	$ 0.80
		1000	$ 0.71
		3000	$ 0.64

Description

General part information

0132-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
