ODB5009-05HB

Active

Orion Fans

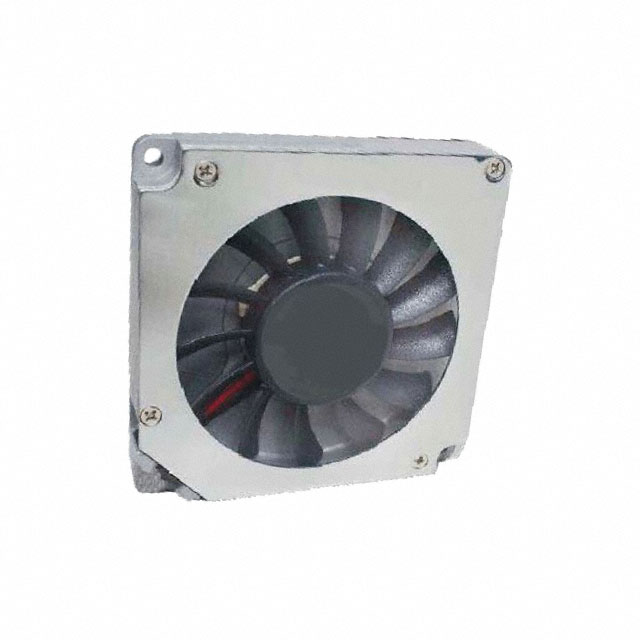

FAN BLOWER 50X9MM BALL 5VDC WIRE

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER 50X9MM BALL 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	ODB5009-05HB

Air Flow	0.084 m³/min
Air Flow	3 CFM
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Blower
Features	Auto Restart
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	34 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.5 W
RPM	5000 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.31 in H2O
Static Pressure	77.2 Pa
Termination	2 Wire Leads
Voltage - Rated	5 V
Width [y]	9 mm

Part	Fan Type	Static Pressure	Static Pressure	RPM	Power (Watts)	Current Rating (Amps)	Width [y]	Lifetime @ Temp.	Features	Noise	Material - Blade	Voltage - Rated	Termination	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow
Orion Fans ODB5009-12HB	Blower	0.31 in H2O	77.2 Pa	5000 RPM	700 mW	110 mA	9 mm	50000 Hrs	Auto Restart	34 dB(A)	Polybutylene Terephthalate (PBT)	12 VDC	2 Wire Leads	50 mm	50 mm	Ball	70 °C	70 °C	-10 °C	-10 °C	0.084 m³/min	3 CFM
Orion Fans ODB5009-05HB	Blower	0.31 in H2O	77.2 Pa	5000 RPM	0.5 W	100 mA	9 mm	50000 Hrs	Auto Restart	34 dB(A)	Polybutylene Terephthalate (PBT)	5 V	2 Wire Leads	50 mm	50 mm	Ball	70 °C	70 °C	-10 °C	-10 °C	0.084 m³/min	3 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 5VDC Square - 50mm L x 50mm H Ball 3.0 CFM (0.084m³/min) 2 Wire Leads
