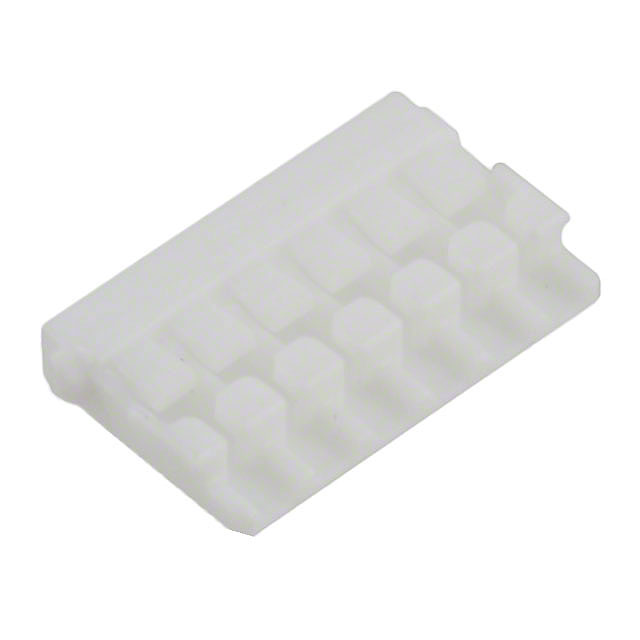

DF57-6S-1.2C

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG 6POS 1.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF57 Insertion/Removal Instr

DF57-6S-1.2C

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG 6POS 1.20MM

Deep-Dive with AI

DocumentsDF57 Insertion/Removal Instr

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF57-6S-1.2C

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Swing Lock
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Pitch [x]	1.2 mm
Pitch [x]	0.047 in

DF57 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Shrouding	Style	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Material	Insulation Color	Number of Positions	Connector Type	Termination	Features	Mounting Type	Number of Positions Loaded	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Contact Shape	Insulation Height [z]	Insulation Height [z]	Number of Rows	Fastening Type	Color	Note	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF57-2830SCFA	30 AWG	27.5 AWG	Socket	Tin	39.4 Áin	1 Ám	Crimp
Hirose Electric USA, Inc. DF57-2628SCF			Socket	Tin	39.4 Áin	1 Ám	Crimp
Hirose Electric USA, Inc. DF57-2P-2.4V(23)								Unshrouded	Board to Cable/Wire	-35 °C	85 °C	UL94 V-0	Liquid Crystal Polymer (LCP)	Black	2	Header	Solder	Solder Retention	Surface Mount	All	Male Blade	2.4 mm	0.094 "	Brass	Tin	Rectangular	0.055 in	1.4 mm	1	Swing Lock
Hirose Electric USA, Inc. DF57-3234SCF	34 AWG	32 AWG	Socket	Tin	39.4 Áin	1 Ám	Crimp
Hirose Electric USA, Inc. DF57-6S-1.2C							Crimp								6	Receptacle			Free Hanging (In-Line)		Female Socket								1	Swing Lock	White	Contacts Not Included	1.2 mm	0.047 in
Hirose Electric USA, Inc. DF57-4S-1.2C(09)							Crimp								4	Receptacle			Free Hanging (In-Line)		Female Socket								1	Swing Lock		Contacts Not Included	1.2 mm	0.047 in
Hirose Electric USA, Inc. DF57-5P-1.2V(21)								Unshrouded	Board to Cable/Wire	-35 °C	85 °C	UL94 V-0	Liquid Crystal Polymer (LCP)	Black		Header	Solder	Solder Retention	Surface Mount	All	Male Blade	1.2 mm	0.047 in	Brass	Tin	Rectangular	0.055 in	1.4 mm	1	Swing Lock
Hirose Electric USA, Inc. DF57-6S-1.2C(09)							Crimp								6	Receptacle			Free Hanging (In-Line)		Female Socket								1	Swing Lock		Contacts Not Included	1.2 mm	0.047 in
Hirose Electric USA, Inc. DF57-2628SCFA(41)			Socket	Gold	8 çin	0.203 çm	Crimp
Hirose Electric USA, Inc. DF57-3P-1.2V(21)								Unshrouded	Board to Cable/Wire	-35 °C	85 °C	UL94 V-0	Liquid Crystal Polymer (LCP)	Black		Header	Solder	Solder Retention	Surface Mount	All	Male Blade	1.2 mm	0.047 in	Brass	Tin	Rectangular	0.055 in	1.4 mm	1	Swing Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF57 Series

6 Rectangular Connectors - Housings Receptacle White 0.047" (1.20mm)

Documents

Technical documentation and resources

DF57 Insertion/Removal Instr

Datasheet
