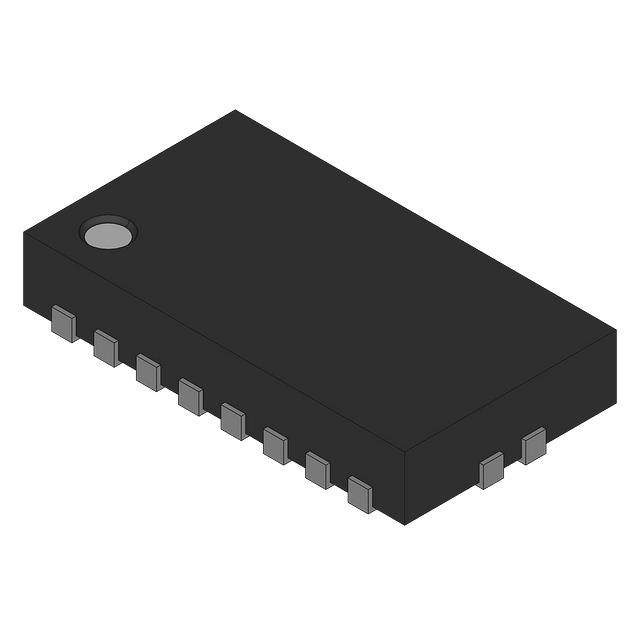

74AHCT240BQ,115

Active

Freescale Semiconductor - NXP

NOW NEXPERIA 74AHCT240BQ - BUS D

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

NOW NEXPERIA 74AHCT240BQ - BUS D

Technical Specifications

Parameters and characteristics for this part

Specification	74AHCT240BQ,115

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Logic Type	Inverting, Buffer
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-DHVQFN (4.5x2.5)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Elements	Number of Bits per Element	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Logic Type	Package / Case	Mounting Type
Freescale Semiconductor - NXP 74AHCT240BQ,115	8 mA	8 mA	2	4	4.5 V	5.5 V	3-State	-40 °C	125 °C	20-DHVQFN (4.5x2.5)	Buffer Inverting	20-VFQFN Exposed Pad	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1155	$ 0.26

General part information

Buffer, Inverting 2 Element 4 Bit per Element 3-State Output 20-DHVQFN (4.5x2.5)
