031-34179-1

Active

Amphenol RF

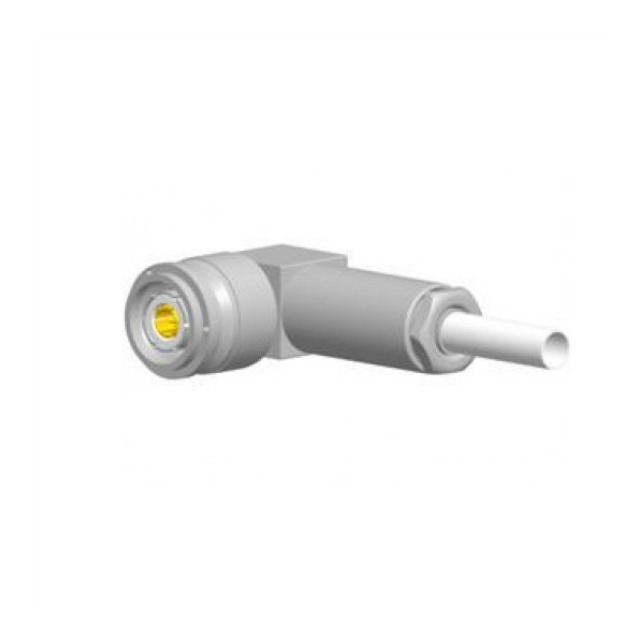

TWINAX RIGHT ANGLE CLAMP PLUG NON-CONSTANT IMPEDANCE

Search across all available documentation for this part.

Active

Amphenol RF

TWINAX RIGHT ANGLE CLAMP PLUG NON-CONSTANT IMPEDANCE

Technical Specifications

Parameters and characteristics for this part

Specification	031-34179-1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC, Twinaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Silver
Impedance	Non-Constant
Ingress Protection	Weatherproof
Number of Ports	1
Shield Termination	Clamp

Part	Center Contact Plating	Ingress Protection	Contact Termination	Number of Ports	Dielectric Material	Body Material	Shield Termination	Housing Color	Body Finish	Connector Style	Center Contact Material	Connector Type	Impedance
Amphenol RF 031-34179-1	Gold	Weatherproof	Solder	1	Polytetrafluoroethylene (PTFE)	Brass	Clamp	Silver	Nickel	TNC Twinaxial	Beryllium Copper	Male Pin Plug	Non-Constant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 603.43
Newark	Each	50	$ 651.46

General part information

TNC, Twinaxial Connector Plug, Male Pin Non-Constant Solder
