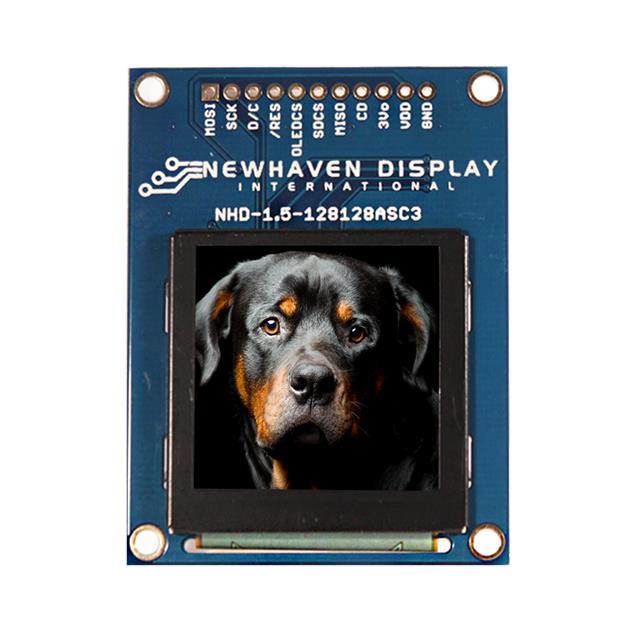

NHD-1.5-128128ASC3

Active

Newhaven Display Intl

1.5" SERIAL COLOR OLED

Search across all available documentation for this part.

Active

Newhaven Display Intl

1.5" SERIAL COLOR OLED

Technical Specifications

Parameters and characteristics for this part

Part	Backlight	Dot Pitch [x]	Dot Pitch [y]	Controller Type	Display Type	Interface	Graphics Color	Viewing Area [x]	Viewing Area [y]	Background Color	Dot Size [z]	Dot Size [y]	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size [x]	Diagonal Screen Size [x]	Secondary Attributes	Function	Contents	Utilized IC / Part	Type	Supplied Contents	Platform	Interconnect System
Newhaven Display Intl NHD-1.5-128128ASC3	Without Backlight	0.21 mm	0.21 mm	SSD1351	OLED - Passive Matrix	SPI	Blue Green Red	28 mm	28 mm	Black	0.19 mm	0.14 mm	128	128	1.5 in	38.1 mm
Newhaven Display Intl NHD-1.5-BREAKOUT																	SPI Interface(s)	Breakout Board	Board(s)	NHD-1.5-128128G SSD1357	Display	Board(s)
Newhaven Display Intl NHD-1.5-AU-SHIELD																		OLED 1.5	Board(s)	NHD-1.5-128128ASC3 SSD1351	Display		Arduino	Arduino R3 Shield
Newhaven Display Intl NHD-1.5-128128UGC3	Without Backlight	0.21 mm	0.21 mm	SSD1351	OLED - Passive Matrix	Parallel/Serial	Blue Green Red	28 mm	28 mm		0.19 mm	0.14 mm	128	128	1.5 in	38.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Red, Green, Blue (RGB) OLED - Passive Matrix SPI 1.5" (38.10mm) 128 x 128
