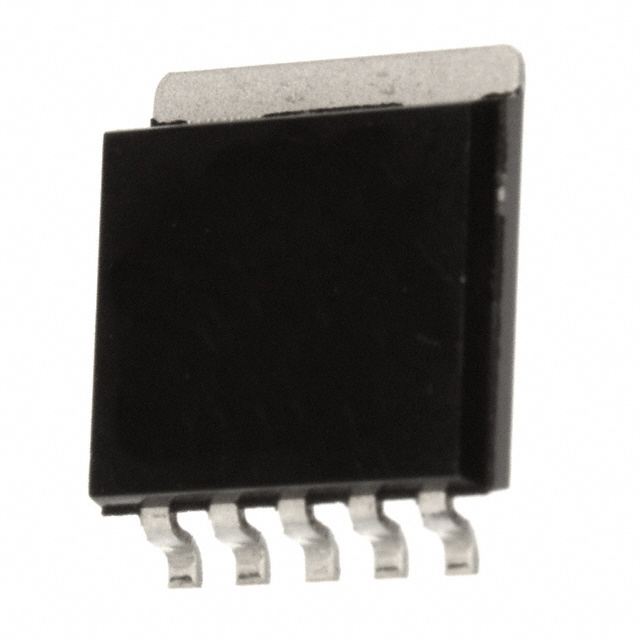

LX8816-04CDF

Obsolete

Microsemi Corporation

IC REG LIN POS ADJ 1A/1A 5SPAK

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

IC REG LIN POS ADJ 1A/1A 5SPAK

Technical Specifications

Parameters and characteristics for this part

Specification	LX8816-04CDF

Current - Output	1 A
Current - Quiescent (Iq)	3.8 mA
Current - Supply (Max) [Max]	6 A
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable (Fixed)
Package / Case	SPAK-5 (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	75 dB
Supplier Device Package	5-SPAK
Voltage - Input (Max) [Max]	10 V
Voltage - Output (Max) [Max]	5.5 V
Voltage Dropout (Max) [Max]	1.3 V

Part	Output Configuration	Number of Regulators	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	PSRR	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Protection Features	Current - Supply (Max) [Max]	Package / Case	Voltage - Output (Max) [Max]	Current - Output	Voltage Dropout (Max) [Max]	Output Type	Supplier Device Package
Microsemi Corporation LX8816-04CDF	Positive	2	3.8 mA	10 V	75 dB	Surface Mount	0 °C	125 °C	Over Current Over Temperature	6 A	SPAK-5 (5 Leads + Tab)	5.5 V	1 A	1.3 V	Adjustable (Fixed)	5-SPAK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 1A, 1A 5-SPAK
