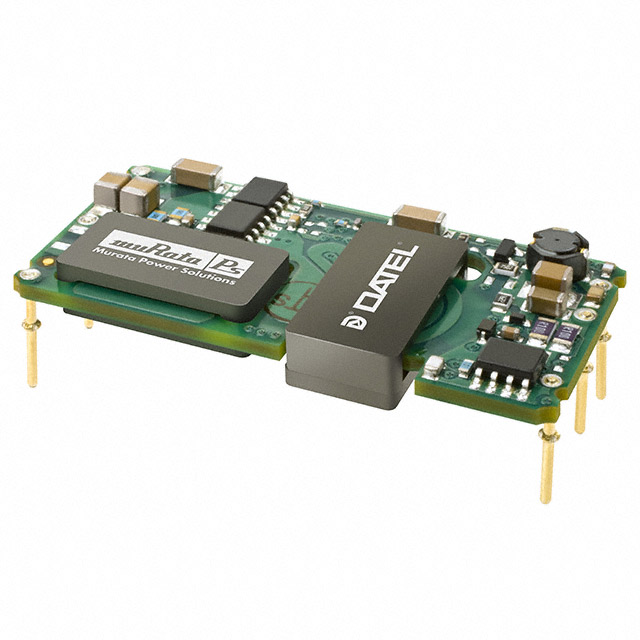

UEI30-120-Q48N-C

Active

Murata Power Solutions Inc.

TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	UEI30-120-Q48N-C

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	2.5 A
Efficiency	89 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	1.92 "
Size / Dimension [x]	48.8 mm
Size / Dimension [y]	23.4 mm
Size / Dimension [y]	0.92 "
Size / Dimension [z]	0.35 "
Size / Dimension [z]	8.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1	Applications	Features	Control Features	Type	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. UEI30-120-Q48N-C	2250 VDC	1	2.5 A	12 V	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	Isolated Module	Through Hole	89 %	18 V	6-DIP Module	75 V	30 W	85 °C	-40 °C	1.92 "	48.8 mm	23.4 mm	0.35 "	8.9 mm	0.92 "
Murata Power Solutions Inc. UEI30-120-Q48P-C	2250 VDC	1	2.5 A	12 V	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	Isolated Module	Through Hole	89 %	18 V	6-DIP Module	75 V	30 W	85 °C	-40 °C	1.92 "	48.8 mm	23.4 mm	0.35 "	8.9 mm	0.92 "
Murata Power Solutions Inc. UEI30-120-Q12P-C	2250 VDC	1	2.5 A	12 V	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	Isolated Module	Through Hole	87.5 %	9 V	6-DIP Module	36 V	30 W	85 °C	-40 °C	1.92 "	48.8 mm	23.4 mm	0.35 "	8.9 mm	0.92 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 2.5A 18V - 75V Input
