9453-1083-009

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK FEMALE SOLDE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK FEMALE SOLDE

Technical Specifications

Parameters and characteristics for this part

Specification	9453-1083-009

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Center Contact Material	Voltage Rating	Connector Style	Dielectric Material	Center Contact Plating	Body Material	Body Finish	Impedance	Connector Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Feature	Housing Color	Number of Ports	Mating Cycles
Radiall USA, Inc. 9453-1083-009	18 GHz	Beryllium Copper	500 V	SMA	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	Gold	50 Ohms	Female Socket Jack	Solder	-65 ░C	105 ░C	Solder	Bulkhead - Front Side Nut	Gold	1	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

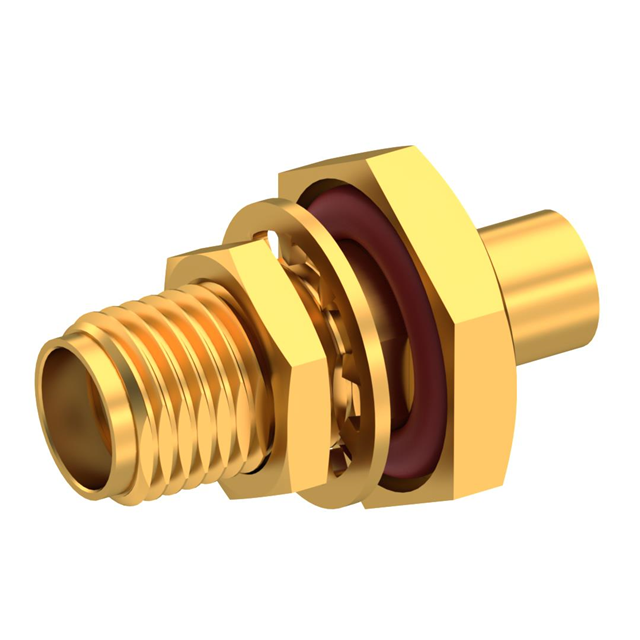

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
