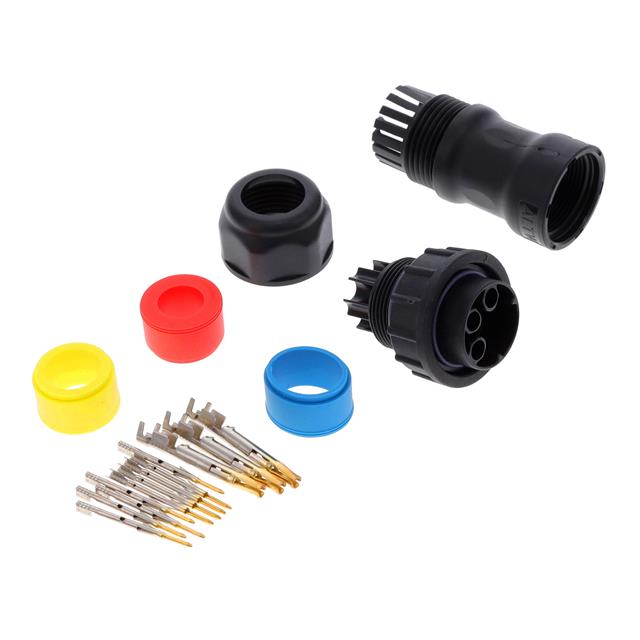

ADCD-12BFDC-LL7AP0
ActiveAmphenol LTW
CONN CIRC PLUG 12POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADCD-12BFDC-LL7AP0
ActiveAmphenol LTW
CONN CIRC PLUG 12POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADCD-12BFDC-LL7AP0 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Color | Black |
| Connector Type | Male Pins, Plug, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 20 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions [custom] | 9 |
| Number of Positions [custom] | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | D |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.55 | |
| 10 | $ 12.01 | |||
| 25 | $ 11.55 | |||
| 50 | $ 11.09 | |||
| 100 | $ 10.47 | |||
| 250 | $ 9.55 | |||
| 500 | $ 8.93 | |||
| 1000 | $ 8.19 | |||
Description
General part information
ADCD-12BFD Series
12 (9 + 3 Power) Position Circular Connector Plug, Female Sockets and Male Pins Crimp
