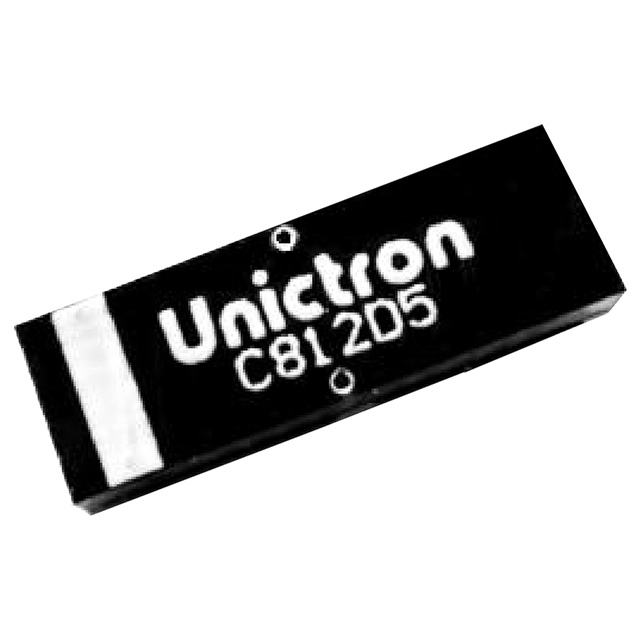

H2U66J1K2B0100
ActiveUnictron Technologies Corporation
868MHZ ISM 863-870MHZ MONOPOLE C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2U66J1K2B0100
ActiveUnictron Technologies Corporation
868MHZ ISM 863-870MHZ MONOPOLE C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2U66J1K2B0100 |
|---|---|
| Antenna Type | Chip |
| Applications | ISM |
| Frequency (Center/Band) | 866.5 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 870 MHz |
| Frequency Range [Min] | 863 MHz |
| Gain | -1 dBi |
| Height (Max) [Max] | 0.063 in |
| Height (Max) [Max] | 1.6 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | General ISM |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| Digi-Reel® | 1 | $ 1.17 | ||
| Tape & Reel (TR) | 3500 | $ 0.49 | ||
| 7000 | $ 0.47 | |||
| 10500 | $ 0.45 | |||
Description
General part information
H2U66J1 Series
RF ANTENNA ISM Chip Solder Surface Mount
