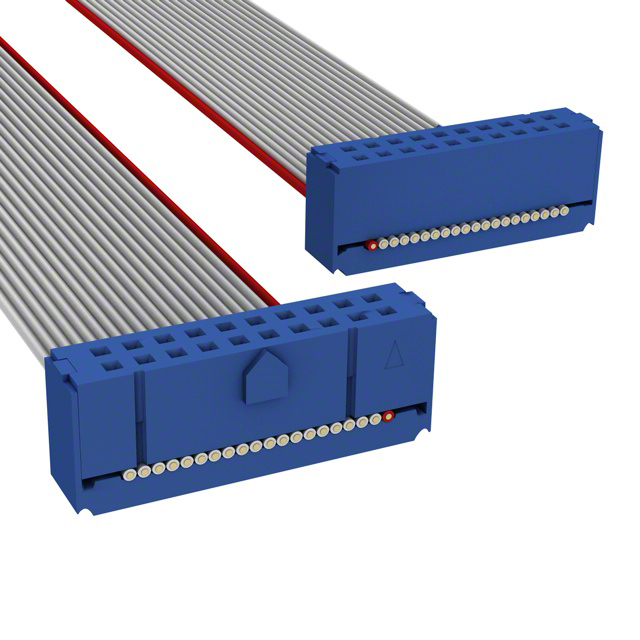

C3CCG-2006G

Active

CW Industries

IDC CABLE - CKC20G/AE20G/CKC20G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3CCG-2006G

Active

CW Industries

IDC CABLE - CKC20G/AE20G/CKC20G

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3CCG-2006G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

C3CCG-2 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Connector	Pitch - Connector	Number of Rows	Pitch - Cable	Pitch - Cable	Connector Type	Number of Positions	Cable Termination	Features	Length	Length	Length	Contact Finish	Length [x]	Length [x]	Color
CW Industries C3CCG-2006G	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	20	IDC	Polarizing Key	152.4 mm	6 "	0.5 '	Gold
CW Industries C3CCG-2018M	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	20	IDC	Polarizing Key				Gold	457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3CCG-2606M	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	26	IDC	Polarizing Key	152.4 mm	6 "	0.5 '	Gold			Multiple Ribbon
CW Industries C3CCG-2636M	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	26	IDC	Polarizing Key				Gold	914.4 mm	3 ft	Multiple Ribbon
CW Industries C3CCG-2006M	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	20	IDC	Polarizing Key	152.4 mm	6 "	0.5 '	Gold			Multiple Ribbon
CW Industries C3CCG-2618M	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	26	IDC	Polarizing Key				Gold	457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3CCG-2636G	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	26	IDC	Polarizing Key				Gold	914.4 mm	3 ft
CW Industries C3CCG-2036M	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	20	IDC	Polarizing Key				Gold	914.4 mm	3 ft	Multiple Ribbon
CW Industries C3CCG-2036G	10 Áin	0.25 Ám	Unshielded	0.1 in	2.54 mm	2	0.05 "	1.27 mm	Socket to Socket	20	IDC	Polarizing Key				Gold	914.4 mm	3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.98
		10	$ 9.20
		25	$ 8.31
		50	$ 7.71
		100	$ 7.17
		250	$ 6.53
		500	$ 6.09
		1000	$ 5.70

Description

General part information

C3CCG-2 Series

20 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
