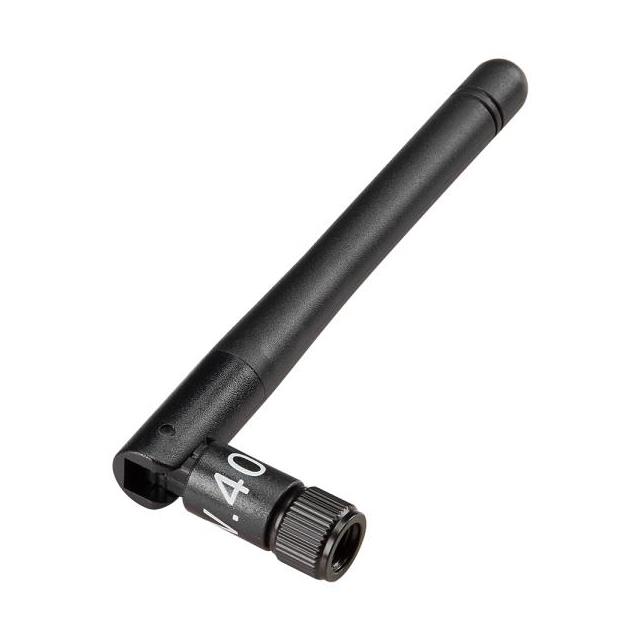

GW.40.2153
ActiveTAOGLAS
2DBI 2.4/5.0~5.8GHZ DIPOLE ANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GW.40.2153
ActiveTAOGLAS
2DBI 2.4/5.0~5.8GHZ DIPOLE ANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW.40.2153 |
|---|---|
| Applications | Bluetooth, WLAN |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 5.85 GHz, 2.5 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 4.39 dBi, 3.15 dBi |
| Height (Max) [Max] | 108.9 mm |
| Height (Max) [Max] | 4.287 in |
| Ingress Protection | IP65 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | Bluetooth |
| Termination | RP-SMA Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.52 | |
| 100 | $ 3.39 | |||
| 1000 | $ 3.26 | |||
Description
General part information
GW.40 Series
RF ANTENNA Bluetooth, WLAN Whip, Right Angle RP-SMA Male Connector Mount
Documents
Technical documentation and resources
