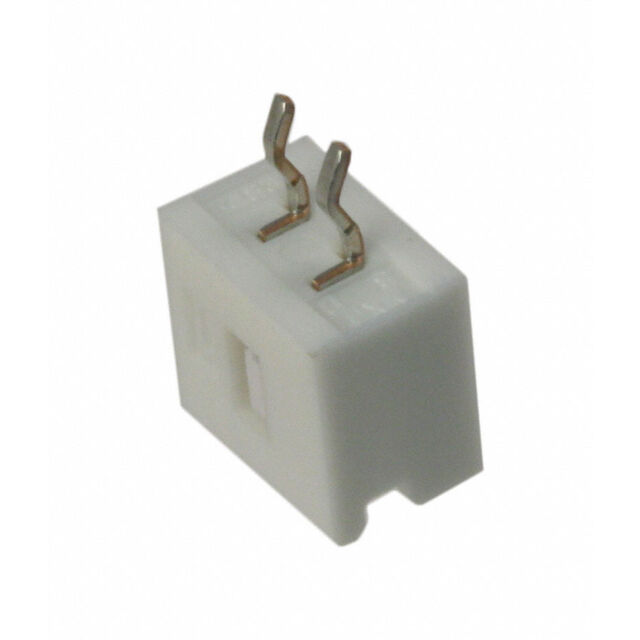

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

0039276023

Obsolete

Molex

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039276023

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4.2 mm
Contact Length - Mating	0.165 in
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	6.8 mm
Insulation Height	0.268 in
Insulation Material	Polybutylene Terephthalate (PBTP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	9.05 mm
Overall Contact Length	0.356 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder

003927 Series
