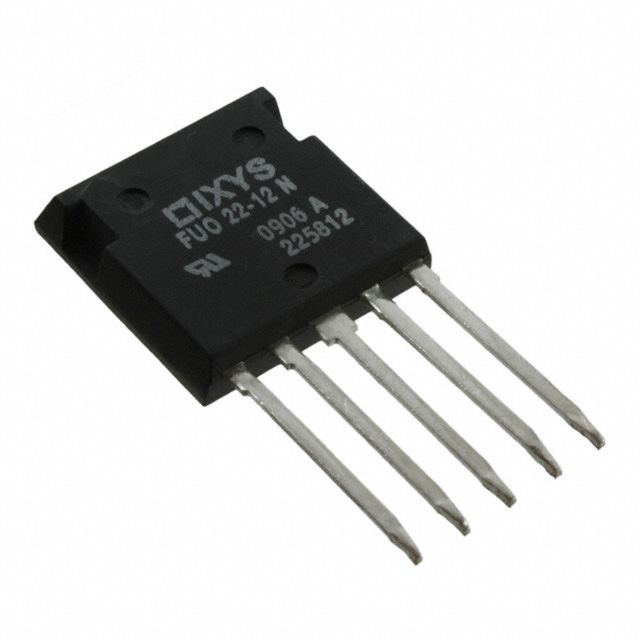

FUO22-12N

Active

IXYS

RECTIFIER BRIDGE DIODE SINGLE 1.2KV 30A 5-PIN ISOPLUS I5-PAC

Search across all available documentation for this part.

Active

IXYS

RECTIFIER BRIDGE DIODE SINGLE 1.2KV 30A 5-PIN ISOPLUS I5-PAC

Technical Specifications

Parameters and characteristics for this part

Specification	FUO22-12N

Current - Average Rectified (Io)	28 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Three Phase
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	i4-Pac™-5
Supplier Device Package	ISOPLUS i4-PAC™
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.62 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Current - Average Rectified (Io)	Technology	Package / Case	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max)
IXYS FUO22-12N	Through Hole	1.2 kV	-55 °C	175 ░C	Three Phase	28 A	Standard	i4-Pac™-5	ISOPLUS i4-PAC™	10 µA	1.62 V
IXYS FUO22-16N	Through Hole		-55 °C	175 ░C	Three Phase	28 A	Standard	i4-Pac™-5	ISOPLUS i4-PAC™	10 µA	1.62 V	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1.2 kV Through Hole ISOPLUS i4-PAC™
