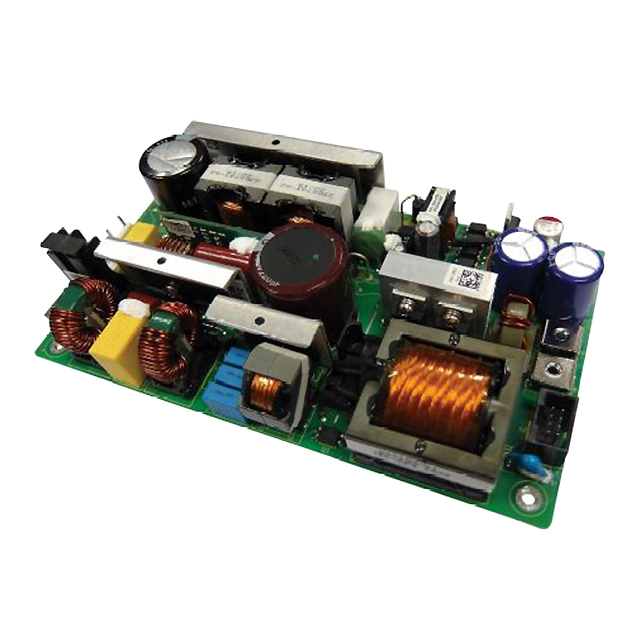

XMS5005Y
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), MEDICAL, 1 OUTPUTS, 500 W, 12 V, 41.6 A
Deep-Dive with AI
Search across all available documentation for this part.
XMS5005Y
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), MEDICAL, 1 OUTPUTS, 500 W, 12 V, 41.6 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XMS5005Y |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output 1 | 41.6 A |
| Efficiency | 92 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 500 W |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XMS5005 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
