1059738

Active

SICK, Inc.

SEN C-SLOT CYLINDER 23.7MM CBL

Search across all available documentation for this part.

Active

SICK, Inc.

SEN C-SLOT CYLINDER 23.7MM CBL

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	For Measuring	Package / Case	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Output	Output Type	Type
SICK, Inc. MZC1-2V2PS-KUB	Cable	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	PNP
SICK, Inc. 1059738	Cable	80 C	-30 ░C		Cylinder		30 VDC	10 VDC			SPST-NO	Switch
SICK, Inc. 1059740	Cable	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	PNP
SICK, Inc. MZC1-4V3PS-KQ0	Cable with Connector	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	PNP
SICK, Inc. 1059756	Cable	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	NPN
SICK, Inc. MZC1-4V3NS-KP0	Cable with Connector	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	NPN
SICK, Inc. MZC1-2V2NS-KR0	Cable with Connector	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	NPN
SICK, Inc. 1059735	Cable with Connector	80 C	-30 ░C		Cylinder		30 VDC	10 VDC			SPST-NO	Switch
SICK, Inc. MZC1-4V3PS-KU0	Cable	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	PNP
SICK, Inc. 1059743	Cable	80 °C	-30 °C	Linear Position	Module	Magnetoresistive	30 VDC	10 VDC	Chassis Mount	NPN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.00

General part information

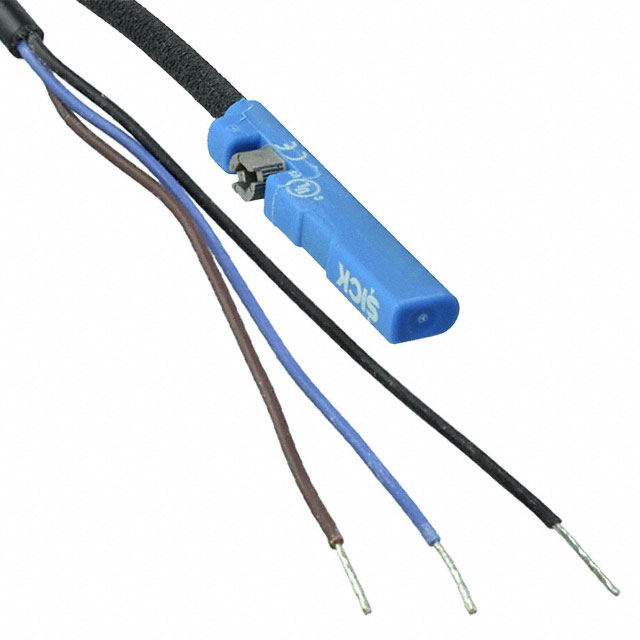

Magnetic Switch SPST-NO Cable Cylinder
